Radiator Sub Fan and Fan Motor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
  2. Remove the air intake duct (rear). Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Duct>REMOVAL .
  3. Disconnect the connector from the sub fan motor assembly.

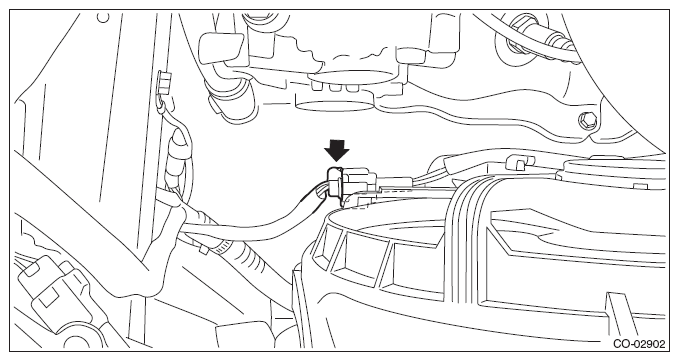

    Fig 1: Locating Sub Fan Motor Assembly Connector
    G08315789Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bolts which hold the radiator sub fan shroud onto the radiator.

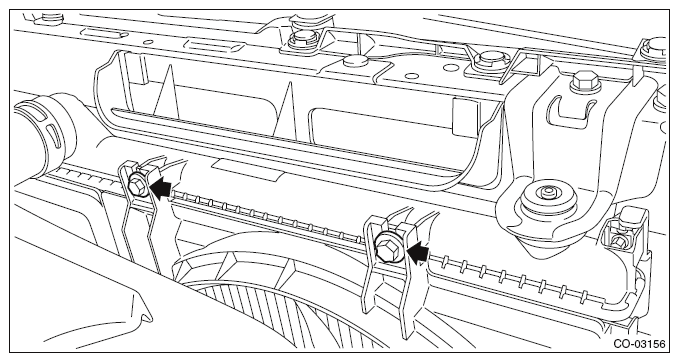

    Fig 2: Locating Radiator Sub Fan Shroud Bolts
    G09476489Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the radiator sub fan and fan motor from vehicle.
