Radiator Main Fan and Fan Motor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
  2. Remove the reservoir tank. Ref. to COOLING(H4DO)>Reservoir Tank>REMOVAL .
  3. Disconnect the connector from the main fan motor assembly.

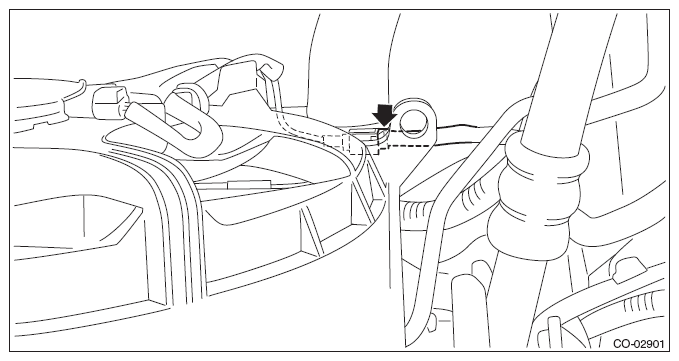

    Fig 1: Locating Main Fan Motor Assembly Connector
    G08315782Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bolts which hold the radiator main fan shroud onto the radiator.

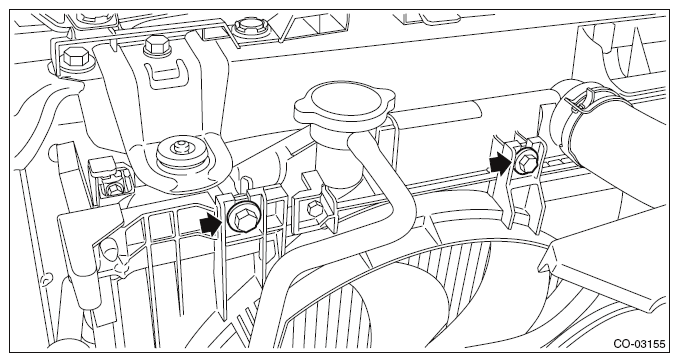

    Fig 2: Locating Radiator Main Fan Shroud Bolts
    G09476483Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the radiator main fan and fan motor from the vehicle.
