Mt Model

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM>Engine Electrical System>WIRING DIAGRAM .

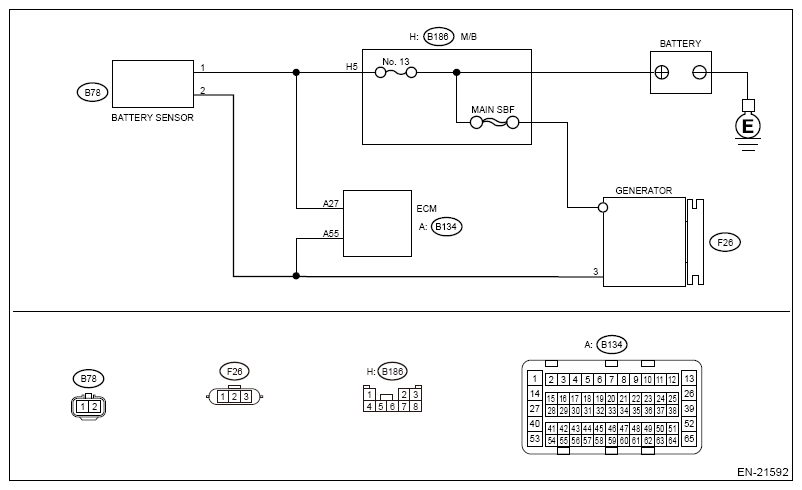

Fig 1: MT Model Engine Electrical System Wiring Diagram (Park Switch Input Circuit High)

Courtesy of SUBARU OF AMERICA, INC.

1. CHECK INPUT SIGNAL OF ECM  .
   1. Turn the ignition switch to ON.
   2. Place the shift lever in neutral.
   3. Measure the voltage between ECM connector and chassis ground.

   Connector & terminal

   (B134) No. 5 (+) - Chassis ground (-):

   Is the voltage less than 1 V?

   • Yes: Repair the poor contact of ECM connector.
   • No: Go to  2.
2. CHECK HARNESS BETWEEN ECM AND NEUTRAL POSITION SWITCH CONNECTOR  .
   1. Turn the ignition switch to OFF.
   2. Disconnect the connector from ECM.
   3. Disconnect the connector from the neutral position switch.
   4. Measure the resistance of harness between ECM connector and neutral position switch connector.

   Connector & terminal

   (B134) No. 5 - (B25) No. 2:

   (B134) No. 53 - (B25) No. 1:

   Is the resistance less than 1 Ω?

   • Yes: Go to  3.
   • No: repair the harness and connector.
   NOTE: In this case, repair the following item:

   • Open circuit in harness between ECM connector and neutral position switch 1 connector
   • Poor contact of coupling connector
3. CHECK NEUTRAL POSITION SWITCH  .

1. Place the shift lever in neutral.
2. Measure the resistance between neutral position switch terminals.

Terminals

No. 1 -No. 2:

Is the resistance less than 1 Ω?

• Yes: Repair the poor contact of neutral position switch connector.
• No: Replace the neutral position switch. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT)>Switches and Harness .
