Reverse Idler Gear: Installation

1. Install the reverse coupling sleeve to the reverse idler gear No. 2.
   NOTE:

   • Install the reverse coupling sleeve in the correct direction.
   • Make sure that the oval-shaped cutout portion inside the reverse coupling sleeve matches the center of the reverse idler gear No. 2 groove.

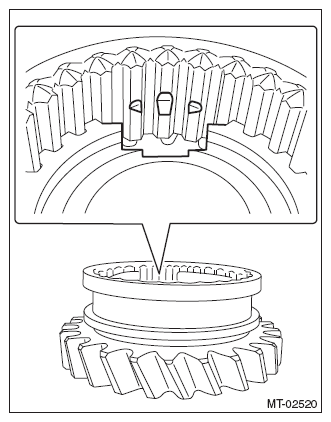

   Fig 3: Inspecting Oval-Shaped Cutout Portion Inside Reverse Coupling Sleeve

   Courtesy of SUBARU OF AMERICA, INC.
2. Install the reverse shifting insert.
   NOTE: Press in the ball part to install.

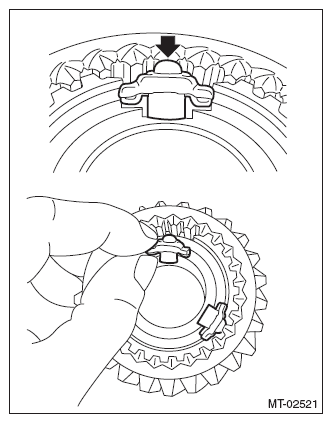

   Fig 4: Locating Ball Part

   Courtesy of SUBARU OF AMERICA, INC.
3. Install the reverse baulk ring and reverse idler gear.
   Fig 5: Identifying Reverse Idler Gear And Baulk Ring

   Courtesy of SUBARU OF AMERICA, INC.
4. Install the needle bearing and reverse idler gear collar.
   Fig 6: Identifying Needle Bearing And Reverse Idler Gear Collar

   Courtesy of SUBARU OF AMERICA, INC.
5. Install the thrust bearing and reverse idler gear washer.
   NOTE: Install the thrust bearing in the correct direction.

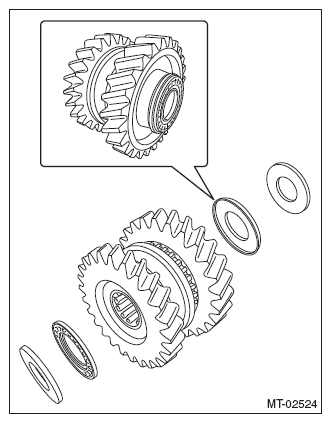

   Fig 7: Installing Thrust Bearing And Reverse Idler Gear Washer

   Courtesy of SUBARU OF AMERICA, INC.

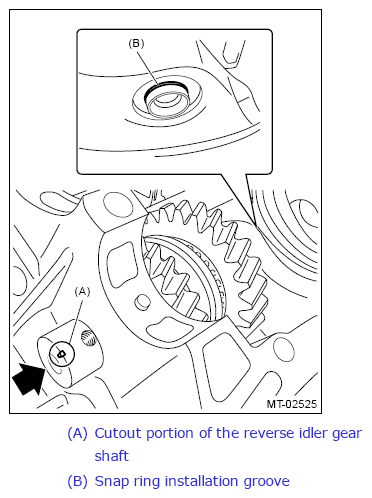

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

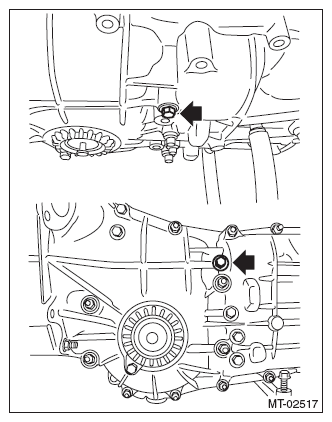

Fig 9: Locating Reverse Idler Gear Shaft Securing Bolt

Courtesy of SUBARU OF AMERICA, INC.

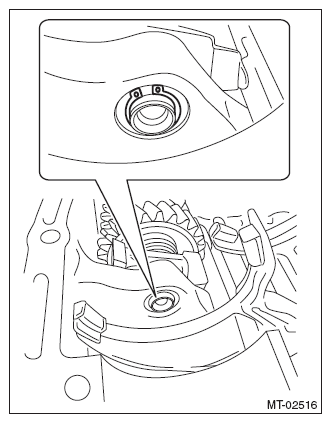

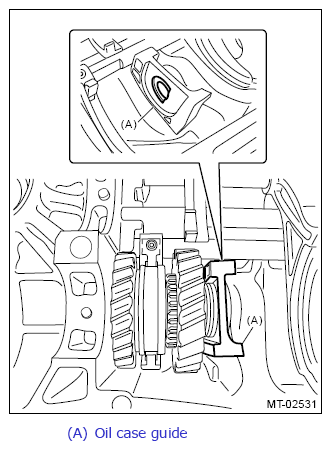

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Fig 12: Locating Reverse Idler Gear Shaft Securing Bolt

Courtesy of SUBARU OF AMERICA, INC.
