Section 10 (M/T Clutch System): Flywheel: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the transmission assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT)>Manual Transmission Assembly>REMOVAL .
Remove the clutch cover and clutch disc. Ref. to CLUTCH SYSTEM>Clutch Disc and Cover>REMOVAL .
Attach the ST.
ST 498497100 CRANKSHAFT STOPPER

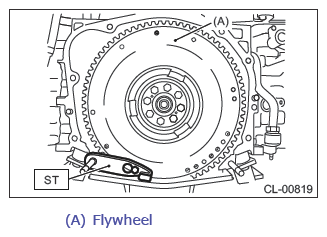

Fig 1: Installing Special Tool With Flywheel
Courtesy of SUBARU OF AMERICA, INC.
Remove the flywheel and crankshaft position sensor plate.
Drive out the pilot bearing from the flywheel.
