Clutch Disc and Cover: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT)>Manual Transmission Assembly>REMOVAL .
  2. Attach the ST on the flywheel.

    ST 499747100 CLUTCH DISC GUIDE

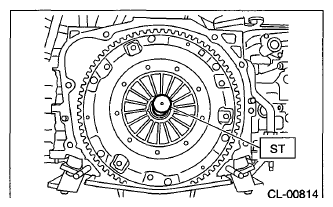

    Fig 1: Installing Special Tool Onto Flywheel
    G07680085Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the clutch cover and clutch disc.
NOTE:
  • Take care not to allow oil to touch the clutch disc face.
  • Do not disassemble the clutch cover or clutch disc.
