Air Cleaner Case: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground terminal from battery sensor. Ref. to NOTE > NOTE > >BATTERY .
Remove the air intake duct (rear). Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Duct>REMOVAL .
Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the clip (B).

Fig 1: Disconnecting Connector From Mass Air Flow And Intake Air Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamp (A) which connects the air intake boot to the air cleaner case (rear), and then remove the clip (B) from the air cleaner case (front).

Fig 2: Removing Clip From Air Cleaner Case (Front)
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case (rear) and air cleaner element.

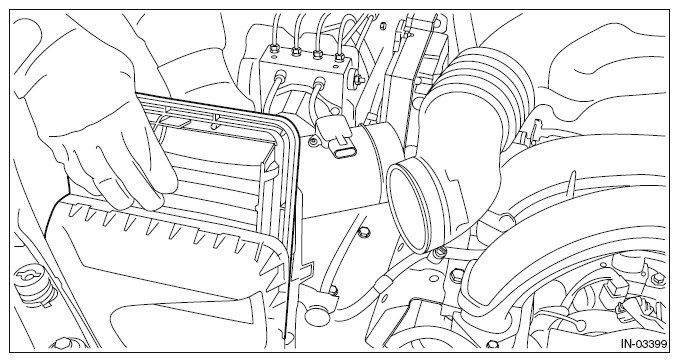

Fig 3: Removing Air Cleaner Case (Rear) And Air Cleaner Element
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt (A) and nut (B) which secure the air cleaner case (front) to the vehicle and to the air cleaner case bracket.

Fig 4: Removing Air Cleaner Case (Front) Bolt And Nut
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case (front).
Remove the air cleaner case bracket from the vehicle.

Fig 5: Locating Air Cleaner Case Bracket Nuts

Courtesy of SUBARU OF AMERICA, INC.
