High-Pressure Fuel Delivery Pipe

CAUTION:
  • Be careful not to spill fuel.
  • Catch the fuel from the pipes using a container or cloth.
  1. Disconnect the ground cable from battery.
  2. Remove the intake manifold. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Intake Manifold>REMOVAL .
  3. Remove the fuel pump insulator. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Insulator>REMOVAL>FUEL PUMP INSULATOR .
  4. Remove the fuel pipe insulator No. 1. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Insulator>REMOVAL>FUEL PIPE INSULATOR NO. 1 .
  5. Remove the fuel pipe insulator No. 2. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Insulator>REMOVAL>FUEL PIPE INSULATOR NO. 2 .
  6. Remove the high-pressure fuel delivery pipes.

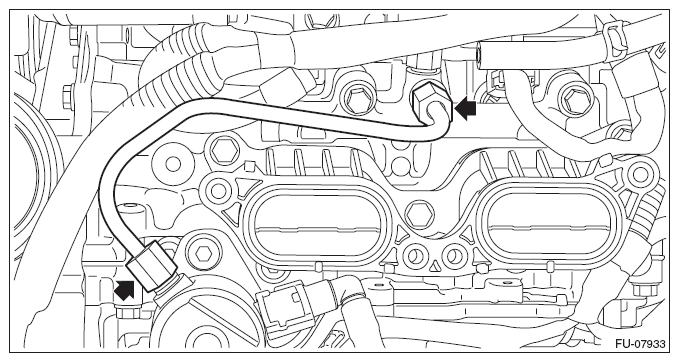

Fig 1: Locating High Pressure Fuel Delivery Pipes Flare Nuts
G09479697Courtesy of SUBARU OF AMERICA, INC.
