Fuel Pipe Insulator No. 1

  1. Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel>PROCEDURE>DRAINING FUEL (WITH SUBARU SELECT MONITOR) .
  2. Disconnect the ground cable from battery.
  3. Open the fuel filler lid and remove the fuel filler cap.
  4. Remove the intake manifold. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Intake Manifold>REMOVAL .
  5. Remove the fuel pipe insulator No. 1.

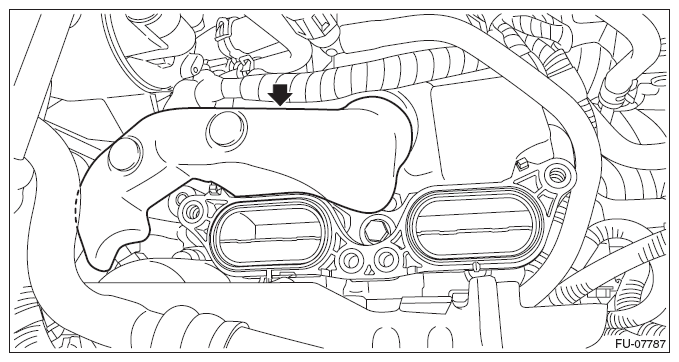

Fig 1: Locating Intake Manifold
G09479649Courtesy of SUBARU OF AMERICA, INC.
