Crank Pulley: Installation

1. Install the crank pulley to the crank pulley boss.
   NOTE:

   • Use new O-rings.

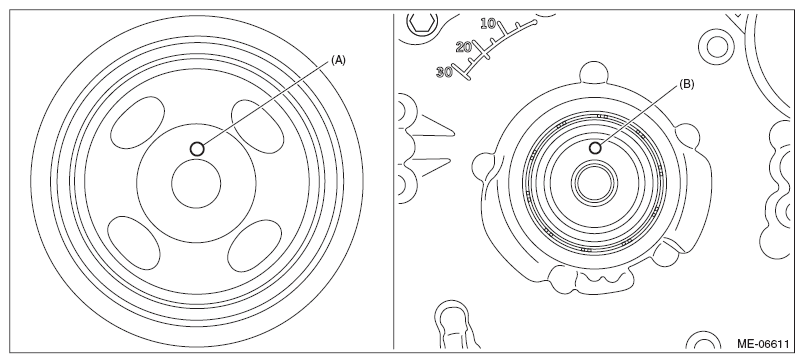

   • Install the crank pulley by aligning the crank pulley knock hole (A) and crank pulley boss knock pin (B).
   Fig 1: Aligning Crank Pulley Knock Hole And Crank Pulley Boss Knock Pin

   Courtesy of SUBARU OF AMERICA, INC.
2. Use the ST to lock the crank pulley, and temporarily tighten the crank pulley bolt.
   NOTE: To prevent damaging ST1, attach the ST2 onto the ST1 as shown.

   ST1 18355AA000 PULLEY WRENCH

   ST2 18334AA000 PULLEY WRENCH PIN SET

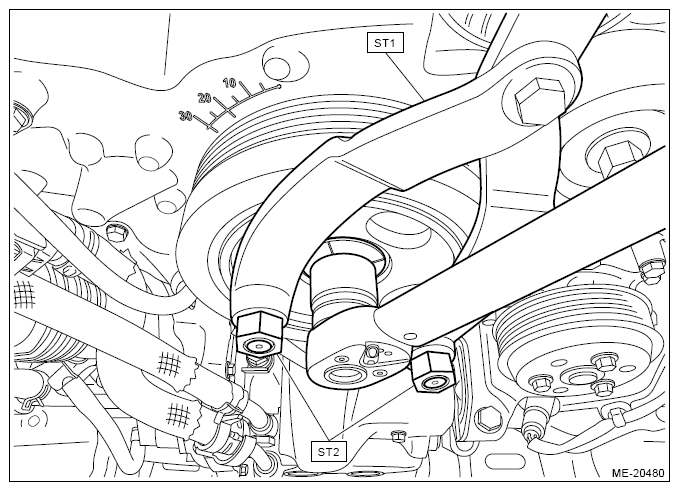

   Fig 2: Attaching ST2 Onto ST1

   Courtesy of SUBARU OF AMERICA, INC.

   ST1 18355AA000 PULLEY WRENCH

   ST2 18334AA000 PULLEY WRENCH PIN SET

   Tightening torque:

   20 N.m (2.0 kgf-m, 14.8 ft-lb)

   Fig 3: Installing Crank Pulley Bolt

   Courtesy of SUBARU OF AMERICA, INC.

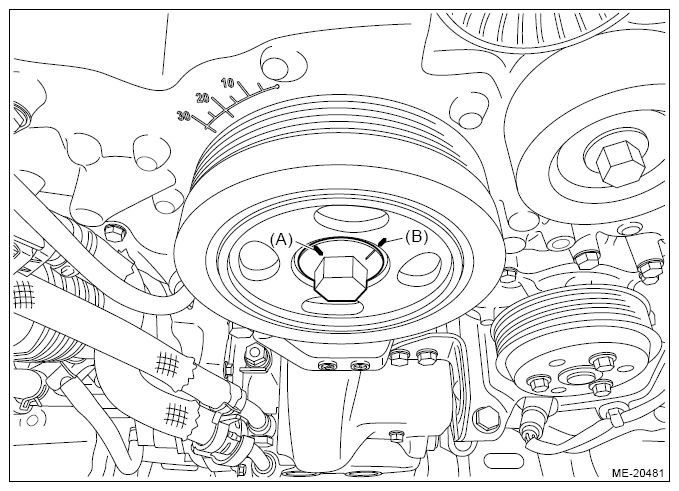

3. Use the marker as shown in the figure, draw the reference line (A) on the crank pulley bolt according to the indented line on the crank pulley bolt head, and draw the end line (B) on the crank pulley.
   NOTE:

   • Lines are indented by 90° on the crank pulley bolt head.
     Fig 4: Identifying Crank Pulley Bolt Head Lines Angle

     Courtesy of SUBARU OF AMERICA, INC.
   • Reference line is drawn for better visibility.
   Fig 5: Draw End Line On Crank Pulley

   Courtesy of SUBARU OF AMERICA, INC.

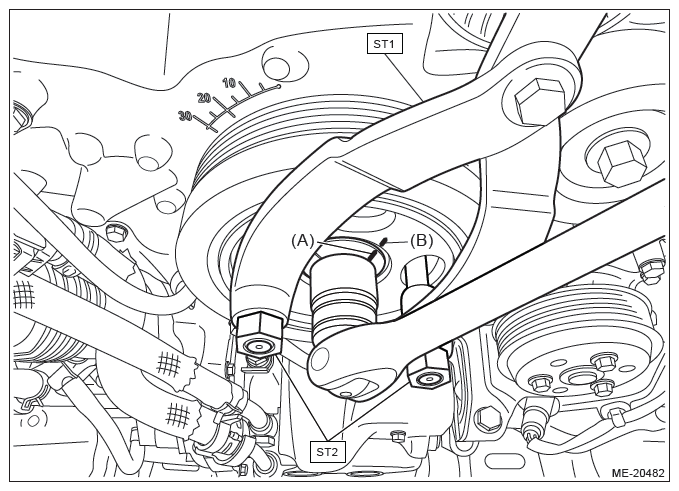

4. Use the ST to lock the crank pulley, and tighten the crank pulley bolt to the angle where reference line (A) and end line (B) are aligned.

ST1 18355AA000 PULLEY WRENCH

ST2 18334AA000 PULLEY WRENCH PIN SET

Tightening angle:

90°±5°

Fig 6: Tightening Crank Pulley Bolt

Courtesy of SUBARU OF AMERICA, INC.
