Cam Carrier RH

  1. Set the part so that the cylinder head RH is on the upper side.
  2. Apply engine oil to the valve shim and the roller rocker arm pivot, and install the valve shim and the roller rocker arm pivot to the cylinder head RH.
    Fig 1: Locating Valve Shim And Roller Rocker Arm Pivot To Cylinder Head RH
    G11266937Courtesy of SUBARU OF AMERICA, INC.
  3. Apply engine oil to the O-ring and the roller rocker arm, and install the O-ring and the roller rocker arm to the cylinder head RH.
    NOTE: Use new O-rings.
    Fig 2: Locating O-Ring And Roller Rocker Arm To Cylinder Head RH
    G11266936Courtesy of SUBARU OF AMERICA, INC.
  4. Apply liquid gasket to the mating surface of cam carrier RH as shown in the figure.
    NOTE:
    • Before applying liquid gasket, degrease the old liquid gasket seal surface of the cylinder head RH and cam carrier RH.
    • Install within 5 min. after applying liquid gasket.

      Liquid gasket:

      THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or equivalent

      Liquid gasket applying diameter:

      3±0.5 mm (0.1181±0.0197 in) range A

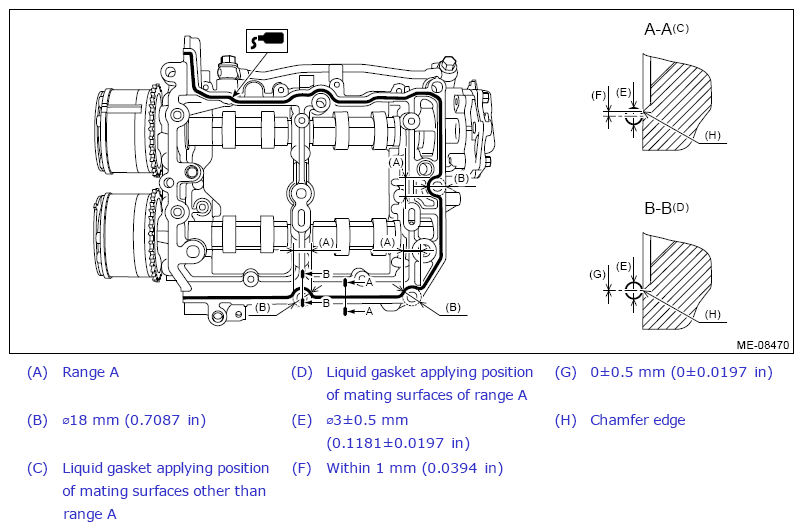

      Fig 3: Applying Liquid Gasket To Mating Surface Of Cam Carrier RH
      G11266950Courtesy of SUBARU OF AMERICA, INC.
  5. Install the cam carrier RH to the cylinder head RH.
    1. Mount the cam carrier RH, then tighten all bolts with a torque of 18 N.m (1.8 kgf-m, 13.3 ft-lb) in numerical order as shown in the figure.
      NOTE: Set the intake camshaft RH and the exhaust camshaft RH to the zero-lift position as shown in the figure.
      Fig 4: Setting Intake Camshaft RH And Exhaust Camshaft RH To Zero-Lift Position
      G10266877Courtesy of SUBARU OF AMERICA, INC.
      Fig 5: Cam Carrier RH Bolts Tightening Sequence
      G11266952Courtesy of SUBARU OF AMERICA, INC.
    2. Loosen the bolts (3 places) by 180° in numerical order as shown in the figure.
      Fig 6: Cam Carrier RH Bolts Loosening Sequence
      G11266953Courtesy of SUBARU OF AMERICA, INC.
    3. Tighten the bolts (3 places) with a torque of 18 N.m (1.8 kgf-m, 13.3 ft-lb) in numerical order as shown in the figure.
      Fig 7: Cam Carrier RH Bolts Tightening Sequence
      G11266954Courtesy of SUBARU OF AMERICA, INC.
    4. Loosen the bolts (3 places) by 180° in numerical order as shown in the figure.
      Fig 8: Cam Carrier RH Bolts Loosening Sequence
      G11266955Courtesy of SUBARU OF AMERICA, INC.
    5. Tighten the bolts (3 places) with a torque of 18 N.m (1.8 kgf-m, 13.3 ft-lb) in numerical order as shown in the figure.
      Fig 9: Cam Carrier RH Bolts Tightening Sequence
      G11266956Courtesy of SUBARU OF AMERICA, INC.
    6. Loosen the bolts (3 places) by 180° in numerical order as shown in the figure.
      Fig 10: Cam Carrier RH Bolts Loosening Sequence
      G11266957Courtesy of SUBARU OF AMERICA, INC.
    7. Tighten the bolts (3 places) with a torque of 18 N.m (1.8 kgf-m, 13.3 ft-lb) in numerical order as shown in the figure.
    NOTE: After tightening, if the liquid gasket is squeezed out onto the seal surface of the chain cover, completely remove any squeezed-out liquid gasket.
    Fig 11: Cam Carrier RH Bolts Tightening Sequence
    G11266958Courtesy of SUBARU OF AMERICA, INC.
  6. Set the part so that the intake manifold is on the upper side.
  7. When the cam carrier RH has been disassembled
    NOTE: When the cam carrier RH has been disassembled, perform the following steps also.
    1. Install the cam sprocket RH. Ref. to MECHANICAL (H4DOTC)>Cam Sprocket>INSTALLATION>CAM SPROCKET RH .
    2. Install the scavenge pump. Ref. to LUBRICATION(H4DO)>Scavenge Pump>INSTALLATION .
    NOTE: When installing the scavenge pump, do not turn the intake camshaft RH to the outside of range of zero-lift (in range where it can be turned lightly by hand).
  8. Check the cam clearance. Ref. to MECHANICAL (H4DOTC)>Cam Clearance>INSPECTION>WHEN TIMING CHAIN ASSEMBLY IS REMOVED .
  9. Connect the water pipe hose to oil pan upper and EGR cooler, and install the water pipe assembly.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

    Fig 12: Locating Water Pipe Hose To Oil Pan Upper And EGR Cooler Clips
    G09480402Courtesy of SUBARU OF AMERICA, INC.
  10. Install the oil pipe assembly to the scavenge pump and cam carrier RH.
    1. Set the oil pipe assembly to the scavenge pump and cam carrier RH, and temporarily tighten the bolts which secure the oil pipe assembly to the scavenge pump and cam carrier RH.
      NOTE: Use a new gasket.

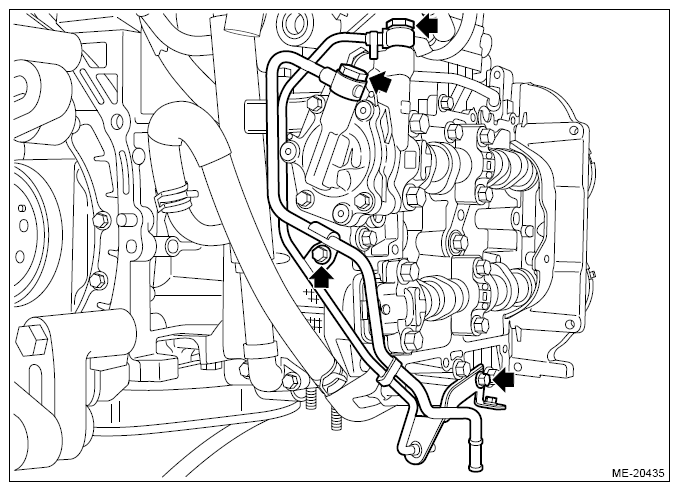

      Fig 13: Locating Oil Pipe Assembly Bolts
      G11266933Courtesy of SUBARU OF AMERICA, INC.
    2. Tighten the bolts which secure the oil pipe assembly to the scavenge pump and cam carrier RH in numerical order as shown in the figure.

    Tightening torque:

    T1: 6.8 N.m (0.7 kgf-m, 5.0 ft-lb)

    T2: 31.5 N.m (3.2 kgf-m, 23.2 ft-lb)

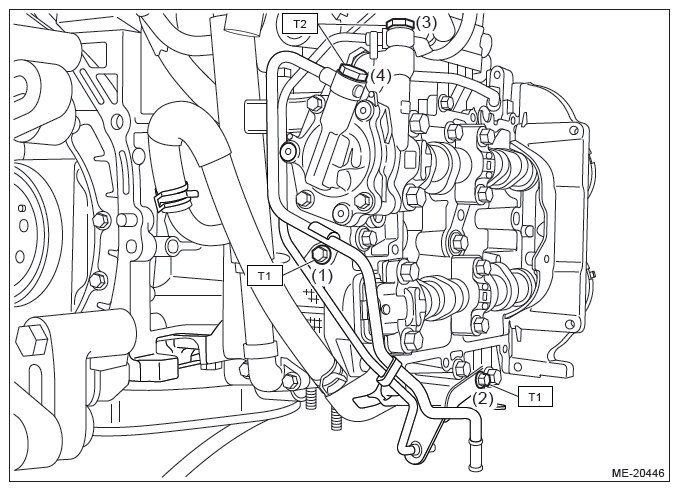

    Fig 14: Oil Pipe Assembly Bolts Tightening Sequence
    G11266961Courtesy of SUBARU OF AMERICA, INC.
  11. Secure the engine harness to the cam carrier RH with a clip.

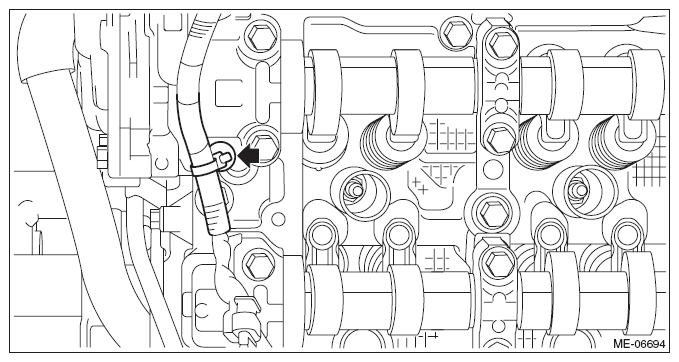

    Fig 15: Locating Engine Harness To Cam Carrier RH With Clip
    G09480400Courtesy of SUBARU OF AMERICA, INC.
  12. Install the rocker cover RH. Ref. to MECHANICAL (H4DOTC)>Rocker Cover>INSTALLATION>ROCKER COVER RH .
  13. Install the timing chain RH. Ref. to MECHANICAL (H4DOTC)>Timing Chain Assembly>INSTALLATION>TIMING CHAIN RH .
  14. Install the chain cover. Ref. to MECHANICAL (H4DOTC)>Chain Cover>INSTALLATION .
  15. Install the engine to the vehicle. Ref. to MECHANICAL (H4DOTC)>Engine Assembly>INSTALLATION .
