Oil Catch Tank: Disassembly

  1. Remove the PCV hose assembly No. 2. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>PCV Hose Assembly>REPLACEMENT>PCV HOSE ASSEMBLY NO. 2 .
  2. Disconnect the turbo charger hose (A) from the oil catch tank, and remove the exhaust cover from the oil catch tank.

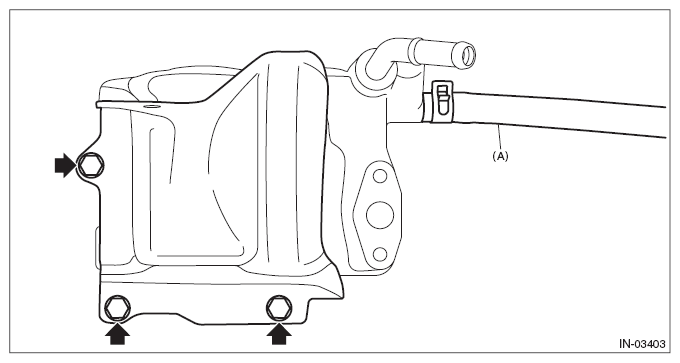

Fig 1: Locating Exhaust Cover Bolts
G09480131Courtesy of SUBARU OF AMERICA, INC.
