PCV Hose Assembly No. 2

Disconnect the ground cable from battery.
Remove the oil catch tank. Ref. to INTAKE (INDUCTION) (H4DOTC)>Oil Catch Tank>REMOVAL .
Remove the clamp cover.

Fig 1: Locating Clamp Cover
Courtesy of SUBARU OF AMERICA, INC.
Break the clamp, and remove the PCV hose assembly No. 2 from the oil catch tank.

Fig 2: Locating PCV Hose Assembly No. 2 From Oil Catch Tank With Clamp
Courtesy of SUBARU OF AMERICA, INC.
Break the clamp, and remove the blow-by diagnosis connector from the PCV hose No. 2.
Install the blow-by diagnosis connector to the PCV hose No. 2, and install the clamp using the Clamp pincer (14100134).
NOTE: Use a new clamp.

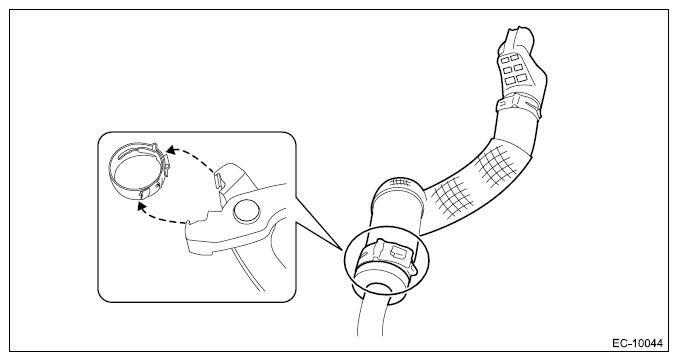

Fig 3: Installing Clamp Using Clamp Pincer
Courtesy of SUBARU OF AMERICA, INC.
Install the PCV hose assembly No. 2 to the oil catch tank, and install the clamp using the Clamp pincer (14100134).
NOTE: Use a new clamp.

Fig 4: Installing Clamp Using Clamp Pincer
Courtesy of SUBARU OF AMERICA, INC.
Install the clamp cover.
CAUTION: Be careful not to allow the lower part of the clamp cover to ride over the PCV hose assembly No. 2.

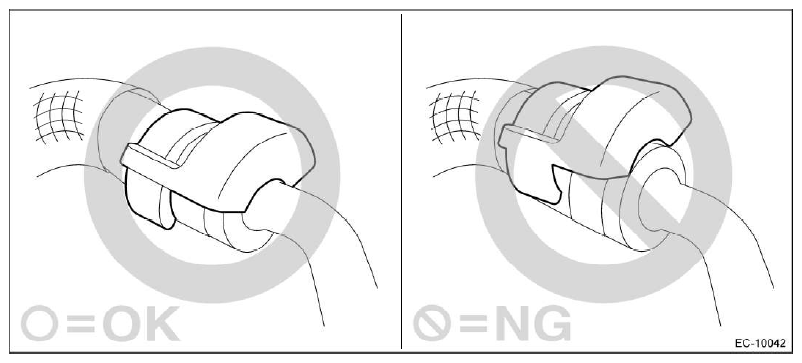

Fig 5: Precaution For Installing Clamp Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the oil catch tank. Ref. to INTAKE (INDUCTION) (H4DOTC)>Oil Catch Tank>INSTALLATION .
Connect the battery ground terminal.
