Radiator Sub Fan and Fan Motor: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
  2. Remove the air intake duct (rear). Ref. to INTAKE (INDUCTION) (H4DOTC)>Air Intake Duct>REMOVAL .
  3. Disconnect the connector from the sub fan motor.
    Fig 1: Locating Sub Fan Motor Connector
    G09480823Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bolts which secure the radiator sub fan motor assembly onto the radiator.

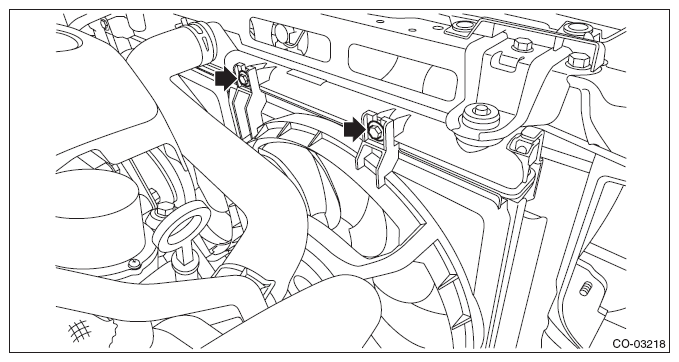

    Fig 2: Locating Radiator Sub Fan Motor Assembly Bolts
    G09480824Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the radiator sub fan motor assembly from the vehicle.
