Radiator Main Fan and Fan Motor: Removal

  1. Remove the collector cover.
    1. Remove the clip (A).
    2. Hold the shaded area (B) by hand and carefully pull the RH side (C) upward.
    3. Hold the shaded area (D) by hand and carefully pull the LH side (E) upward.

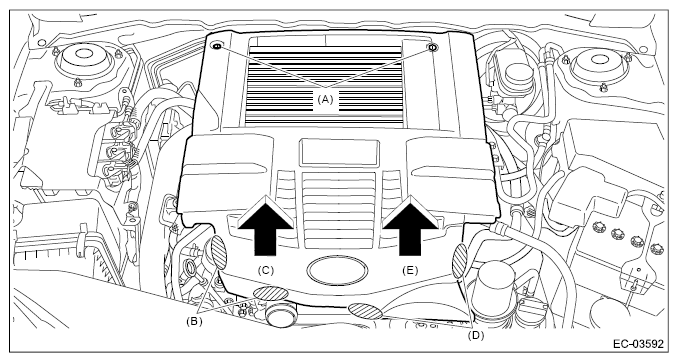

    Fig 1: Pulling Collector Cover RH And LH Side Upward
    G11267324Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
  3. Remove the reservoir tank. Ref. to COOLING (H4DOTC)>Reservoir Tank>REMOVAL .
  4. Disconnect the connector from the main fan motor.
    Fig 2: Locating Main Fan Motor Connector
    G09480817Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the bolts which secure the radiator main fan motor assembly onto the radiator.

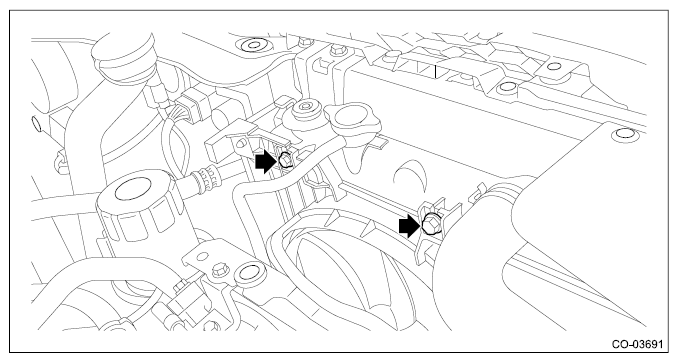

    Fig 3: Locating Radiator Main Fan Motor Assembly Bolts
    G11267326Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the radiator main fan motor assembly from the vehicle.
