PCV Pipe: Installation

Install the blow-by diagnosis connector to the PCV pipe assembly, and install the clamp using the Clamp pincer (14100134).
NOTE: Use a new PCV pipe assembly and clamp.

Fig 1: Installing PCV Pipe Assembly And Clamp
Courtesy of SUBARU OF AMERICA, INC.
Connect the quick connector of the PCV pipe assembly to the PCV connector.
CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- Make sure that the quick connector is securely connected.

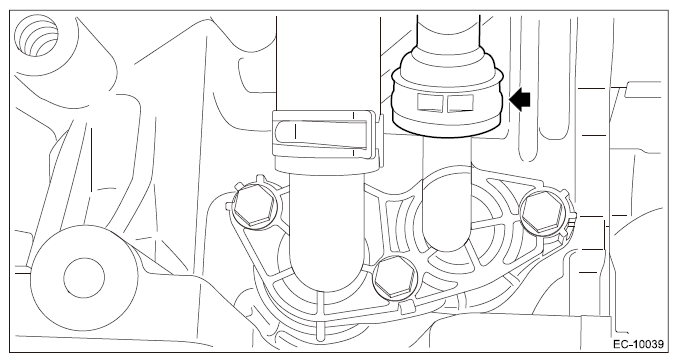

Fig 2: Locating Quick Connector Of PCV Pipe Assembly To PCV Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the A/C compressor. Ref. to HVAC SYSTEM (HEATER, VENTILATOR AND A/C)>Compressor>INSTALLATION .
Attach the clips which secure the PCV pipe assembly to the intake manifold.

Fig 3: Locating PCV Pipe Assembly To Intake Manifold With Clips
Courtesy of SUBARU OF AMERICA, INC.
Install the PCV pipe assembly to the clip.

Fig 4: Locating PCV Pipe Assembly To Clip
Courtesy of SUBARU OF AMERICA, INC.
Install the intake duct No. 2. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intake Duct>INSTALLATION>INTAKE DUCT NO. 2.
Connect the battery ground terminal.
Charge the A/C system with refrigerant. Ref. to HVAC SYSTEM (HEATER, VENTILATOR AND A/C)>Refrigerant Charging Procedure>PROCEDURE .
Install the collector cover.
