Stop Light Switch: Removal

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .
  3. Remove the knee airbag module. Ref. to AIRBAG SYSTEM>Knee Airbag Module>REMOVAL .
  4. Remove the stop light switch.
    1. Disconnect the stop light switch connector.
    2. Remove the stop light switch by turning it counterclockwise.

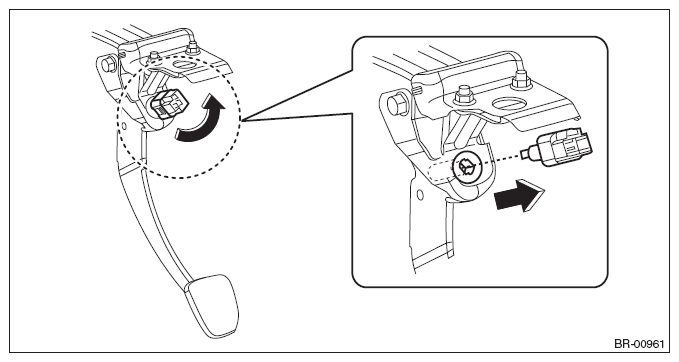

Fig 1: Turning Stop Light Switch Counterclockwise
G08314881Courtesy of SUBARU OF AMERICA, INC.
