Knee Airbag Module: Removal
CAUTION:
- Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .
- Do not allow harness and connectors to interfere or get tangled up with other parts.
- Turn the ignition switch to OFF.
- Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY
.CAUTION: For model with battery sensor, disconnect the ground terminal from battery sensor.
- Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .

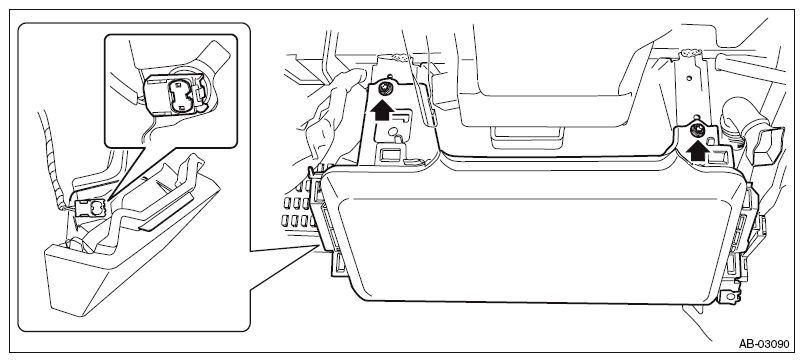

- Remove the nuts to remove the knee airbag module and disconnect the harness connector. Ref. to AIRBAG SYSTEM>Airbag Connector>PROCEDURE>DRIVER'S AIRBAG MODULE, KNEE AIRBAG MODULE, CURTAIN AIRBAG MODULE AND PRETENSIONER .
