Rear Brake Pad: Installation

NOTE: Before installation, remove the pad clip and remove mud, foreign matter and rust from the caliper body assembly and the support - rear disc brake.

Apply a thin coat of grease to the support - rear disc brake.
Grease:

An item contained in the pad kit, Molykote M7439 or equivalent

Fig 1: Applying Thin Coat Of Grease To Support - Front Disc Brake
Courtesy of SUBARU OF AMERICA, INC.
Before installation, check the brake pad. Ref. to BRAKE>Rear Brake Pad>INSPECTION .
Apply a thin coat of grease to the pad clip.
Grease:

An item contained in the pad kit, Molykote M7439 or equivalent

Fig 2: Applying Thin Coat Of Grease To Pad Clip
Courtesy of SUBARU OF AMERICA, INC.

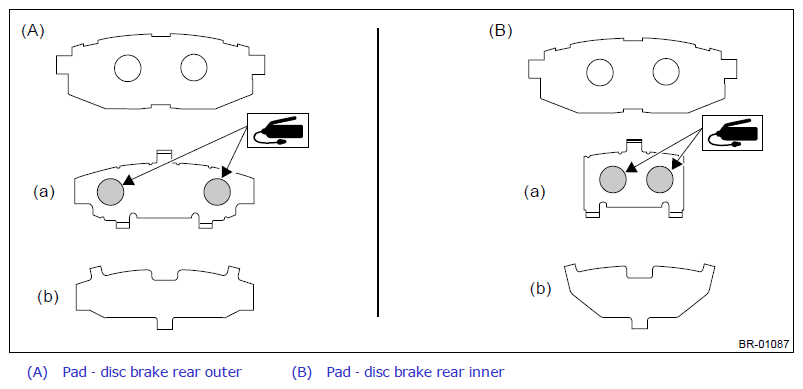

Apply a thin coat of grease to the shim - disc brake rear inner (a) and the shim - disc brake rear outer (b).
Grease:

Grease contained in the pad kit or WAKO grease V160

Fig 3: Applying Thin Coat Of Grease To Shim - Disc Brake
Courtesy of SUBARU OF AMERICA, INC.
Install the pad clip.
Press back the piston with a disc brake piston tool as needed.
CAUTION: When pressing back the piston, the clearance between pad and disc rotor becomes large, which makes the brake pedal effort softer.
After the installation of rear wheel, be sure to perform the adjustment of the clearance and the pedal effort by depressing the brake pedal several times.
Install the brake pad to the support - rear disc brake.
Install the caliper body assembly to the support - rear disc brake.
Tightening torque:

Caliper bolt: 27 N.m (2.75 kgf-m, 19.9 ft-lb)
Install the brake hose bracket.
Tightening torque:

Brake hose bracket: 33 N.m (3.36 kgf-m, 24.3 ft-lb)
Install the rear wheels.
Tightening torque:

120 N.m (12.24 kgf-m, 88.5 ft-lb)
