Rear Brake Pad: Inspection
- Check the pad thickness.
NOTE:
- Always replace the pads of both wheels and both sides as a set.
- Replace pad clips if they are twisted or worn.
- Replace the pad if there is oil or grease on it.
- A wear indicator is installed on the pad - disc brake rear inner. If the pad is worn to the limit, the end of wear indicator contacts disc rotor, and a squeaking sound is heard as the wheel rotates. If the sound is heard, replace the pad.

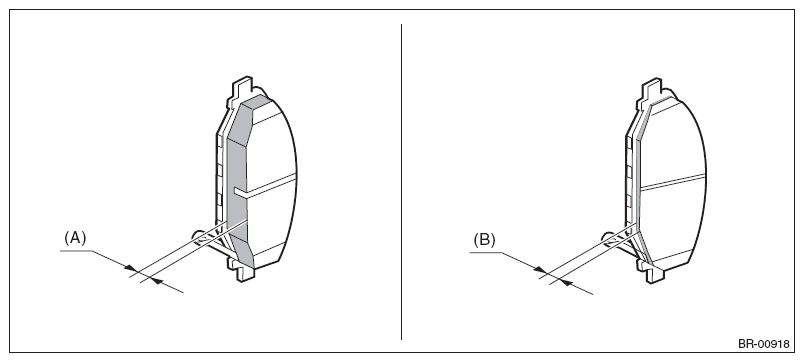

Courtesy of SUBARU OF AMERICA, INC.
| Disc rotor type |
Standard (A) |
Wear limit (B) |
| Pad thickness |
Solid disc |
9 mm (0.35 in) |
1.5 mm (0.059 in) |
| Ventilated disc |
11 mm (0.43 in) |
- If the wear limit is exceeded in the inspection, replace the brake pad.
