Rear Regulator and Motor Assembly: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - rear door. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>REAR DOOR .
  3. Remove the sealing cover - rear door. Ref. to EXTERIOR BODY PANELS>Rear Sealing Cover>REMOVAL .
  4. Remove the glass assembly - rear door. Ref. to GLASS/WINDOWS/MIRRORS>Rear Door Glass>REMOVAL .
  5. Remove the regulator and motor assembly - rear.
    1. Disconnect the motor - rear connector.

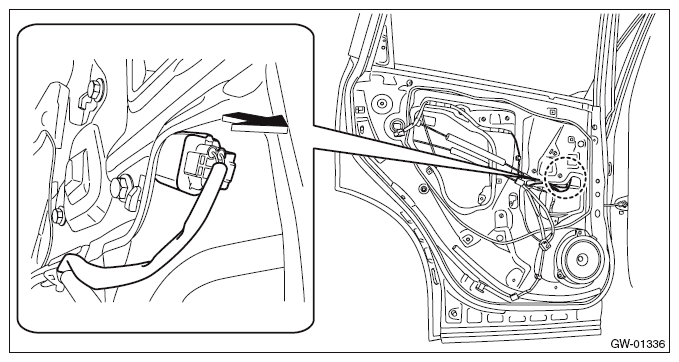

      Fig 1: Disconnecting Motor - Rear Connector
      G09484467Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the bolts, and then remove the regulator and motor assembly - rear.

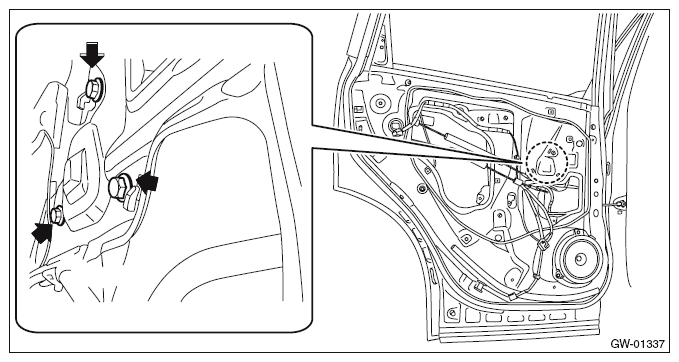

    Fig 2: Locating Regulator And Motor Assembly - Rear Bolts
    G09484468Courtesy of SUBARU OF AMERICA, INC.
