Rear Door Glass: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - rear door. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>REAR DOOR .
  3. Remove the sealing cover - rear door. Ref. to EXTERIOR BODY PANELS>Rear Sealing Cover>REMOVAL .
  4. Attach the battery ground cable and the switch - power window, and turn the ignition switch to ON.
  5. Remove the glass assembly - rear door.
  1. Operate the switch - power window sub rear to move the glass assembly - rear door to the position where the mounting bolts can be seen.
  2. Pull out the running channel - rear door.
  3. Remove the screws and remove the rear outer gusset cover.

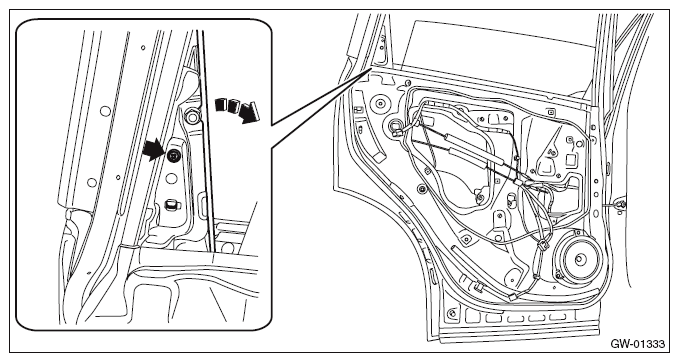

    Fig 1: Pulling Out Running Channel - Rear Door
    G09484464Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bolts and nuts, and remove the sash COMPL - lower.

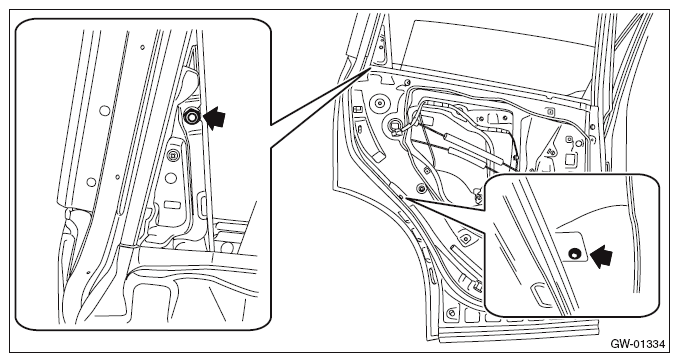

    Fig 2: Locating Sash COMPL - Lower Bolts And Nuts
    G09484465Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the bolts, and remove the glass assembly - rear door.
CAUTION: Avoid impact and damage to the glass assembly - rear door.

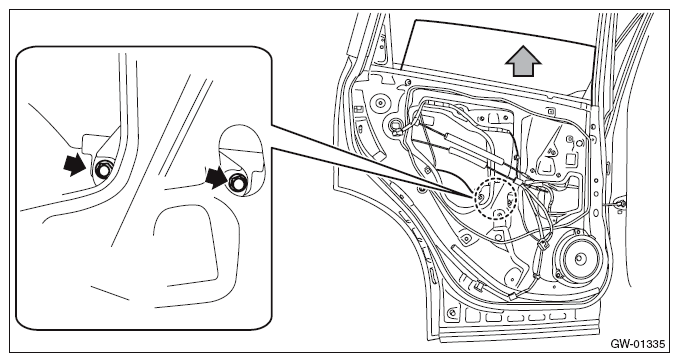

Fig 3: Locating Glass Assembly - Rear Door Bolts
G09484466Courtesy of SUBARU OF AMERICA, INC.
