Front Seat

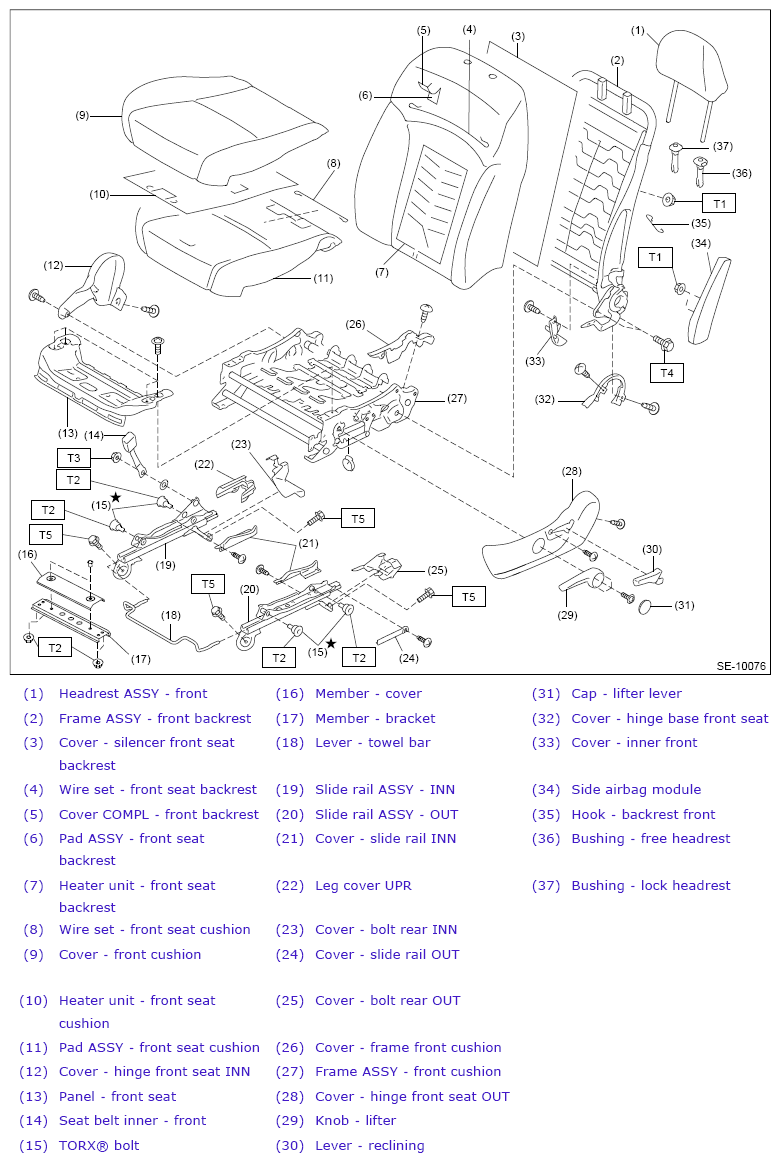

Fig 1: Exploded View Of Front Seat With Torque Specification (Manual Seat LH)
G11268802Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.61, 4.4)

T2: 18 (1.84, 13.3)

T3: 38 (3.87, 28)

T4: 52 (5.3, 38.4)

T5: 53 (5.4, 39.1)

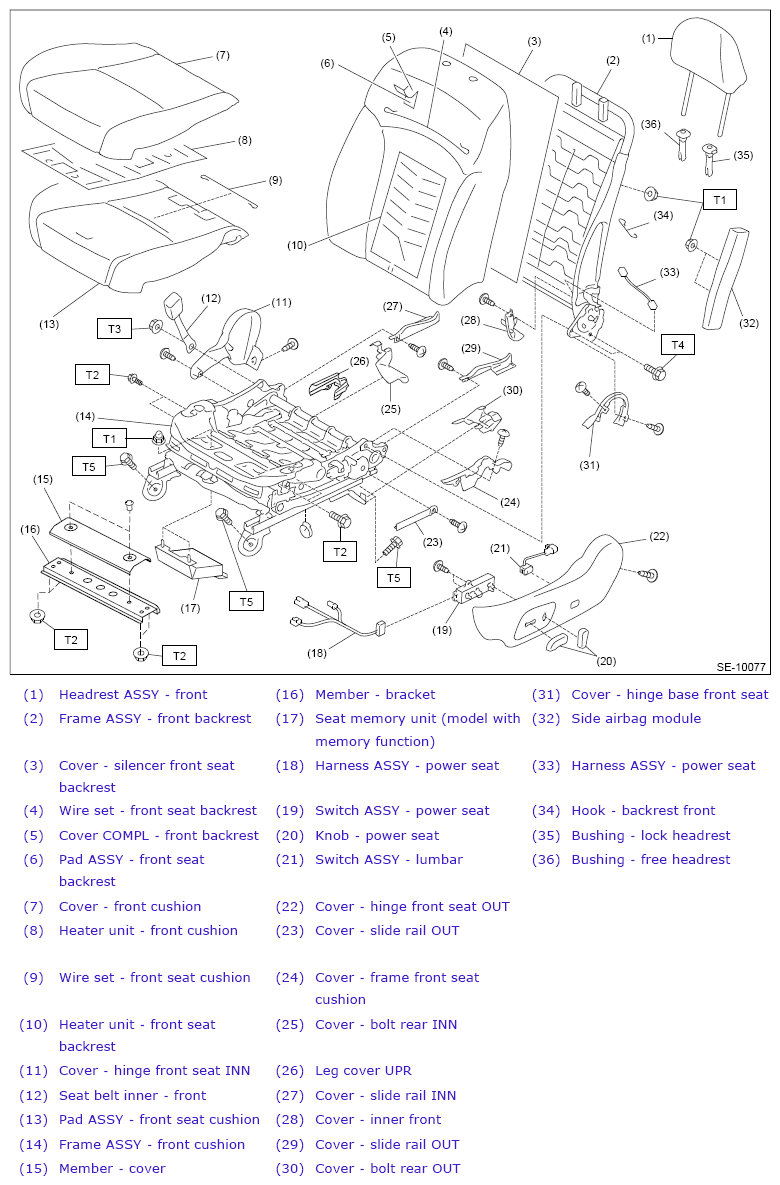

Fig 2: Exploded View Of Front Seat With Torque Specification (Power Seat LH)
G11268803Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.61, 4.4)

T2: 18 (1.84, 13.3)

T3: 38 (3.87, 28)

T4: 52 (5.3, 38.4)

T5: 53 (5.4, 39.1)

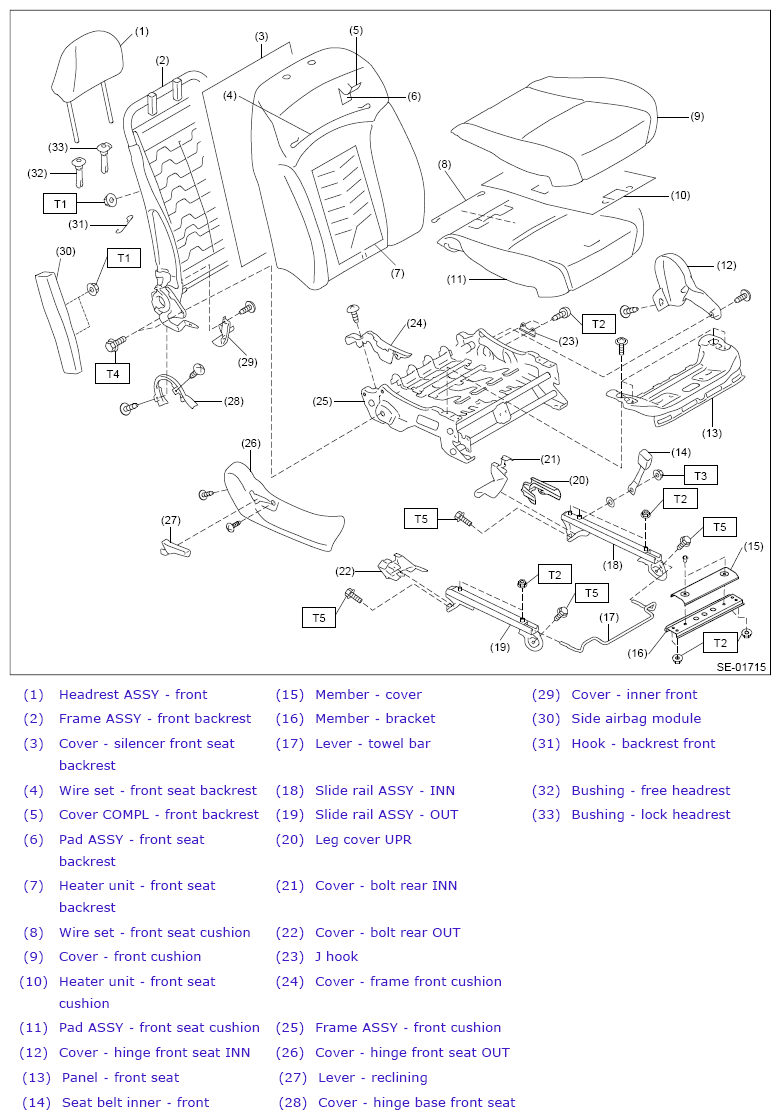

Fig 3: Exploded View Of Front Seat With Torque Specification (Manual Seat RH)
G11268804Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.61, 4.4)

T2: 18 (1.84, 13.3)

T3: 38 (3.87, 28)

T4: 52 (5.3, 38.4)

T5: 53 (5.4, 39.1)
