DTC B27A5 Front Internal Antenna Open: Wiring diagram

Keyless access system Ref. to WIRING SYSTEM>Keyless Access System>WIRING DIAGRAM .

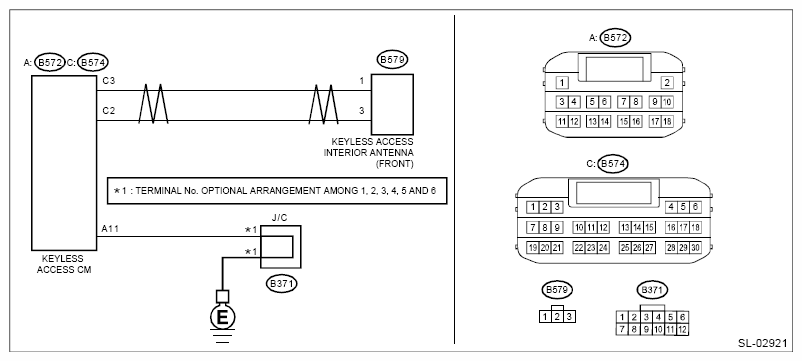

Fig 1: Front Internal Antenna Open System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: For replacement procedure of keyless access CM, refer to the "REGISTRATION MANUAL FOR IMMOBILIZER" provided as a separate volume. Contact an authorized Subaru Dealership.

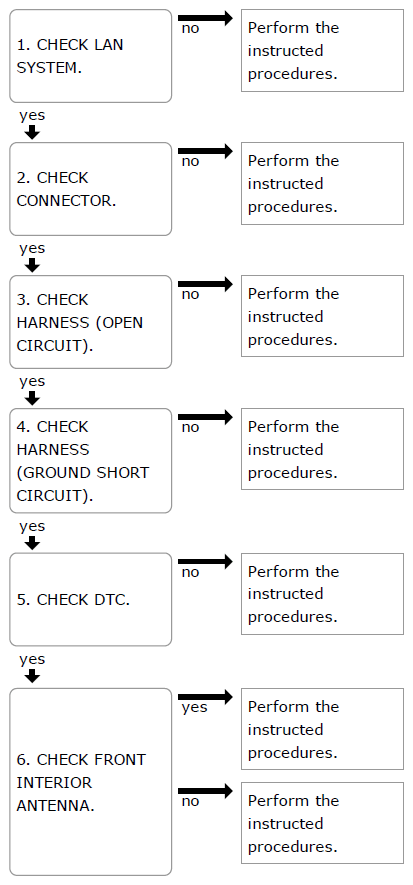

Fig 2: Front Internal Antenna Open Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
