Keyless Access System: Wiring Diagram

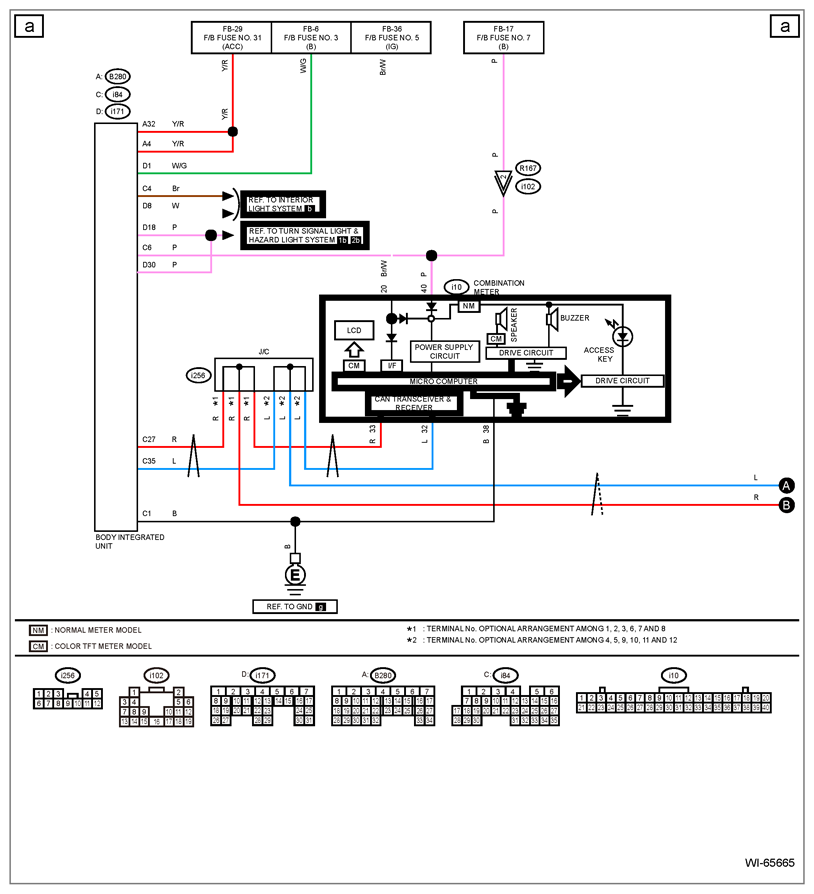

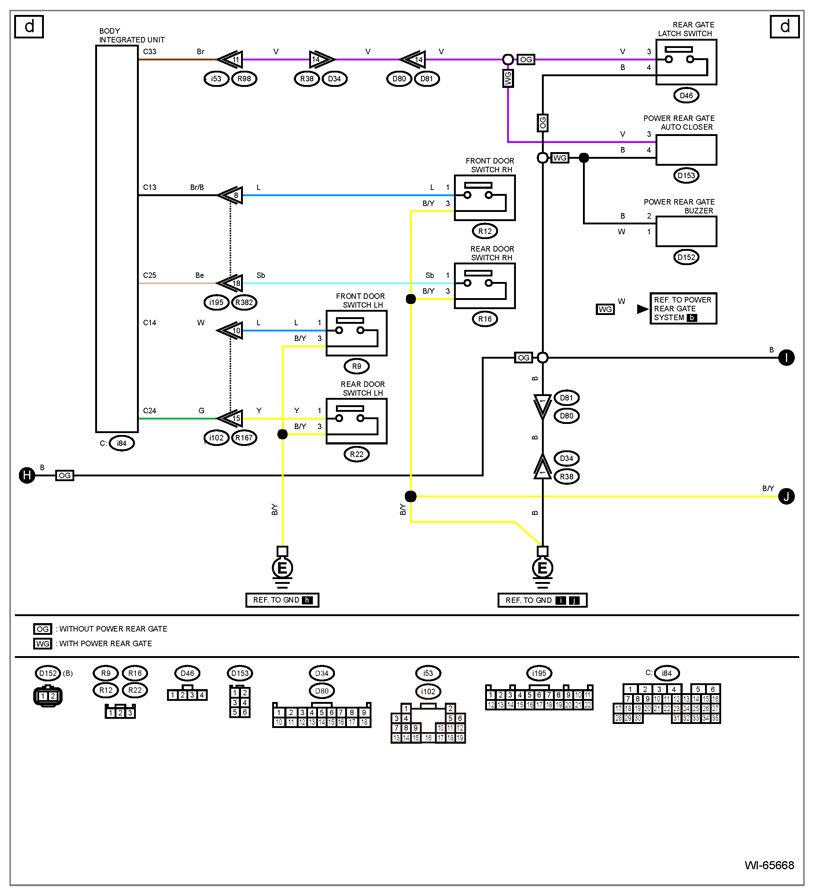

Fig 1: Keyless Access System Wiring Diagram (1 Of 9)

Courtesy of SUBARU OF AMERICA, INC.

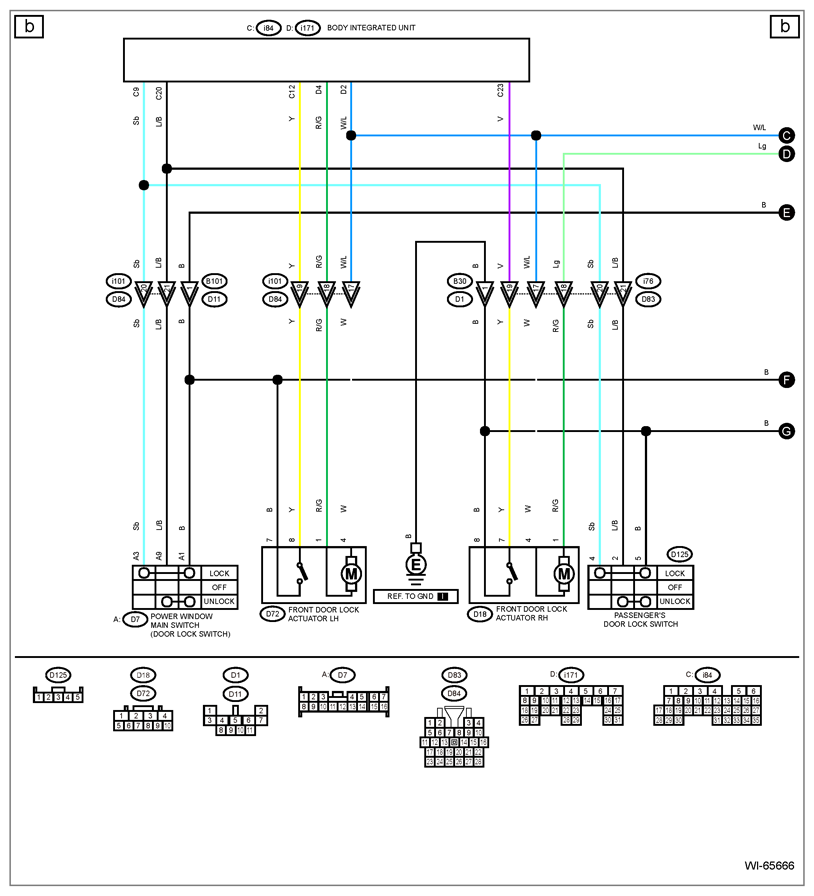

Fig 2: Keyless Access System Wiring Diagram (2 Of 9)

Courtesy of SUBARU OF AMERICA, INC.

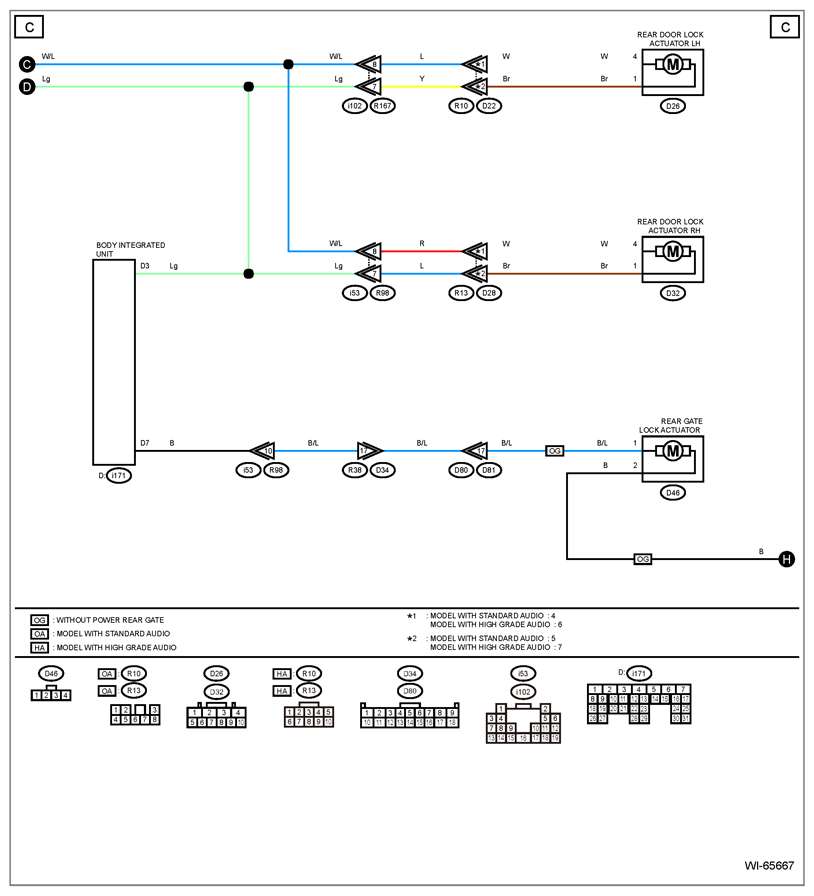

Fig 3: Keyless Access System Wiring Diagram (3 Of 9)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Keyless Access System Wiring Diagram (4 Of 9)

Courtesy of SUBARU OF AMERICA, INC.

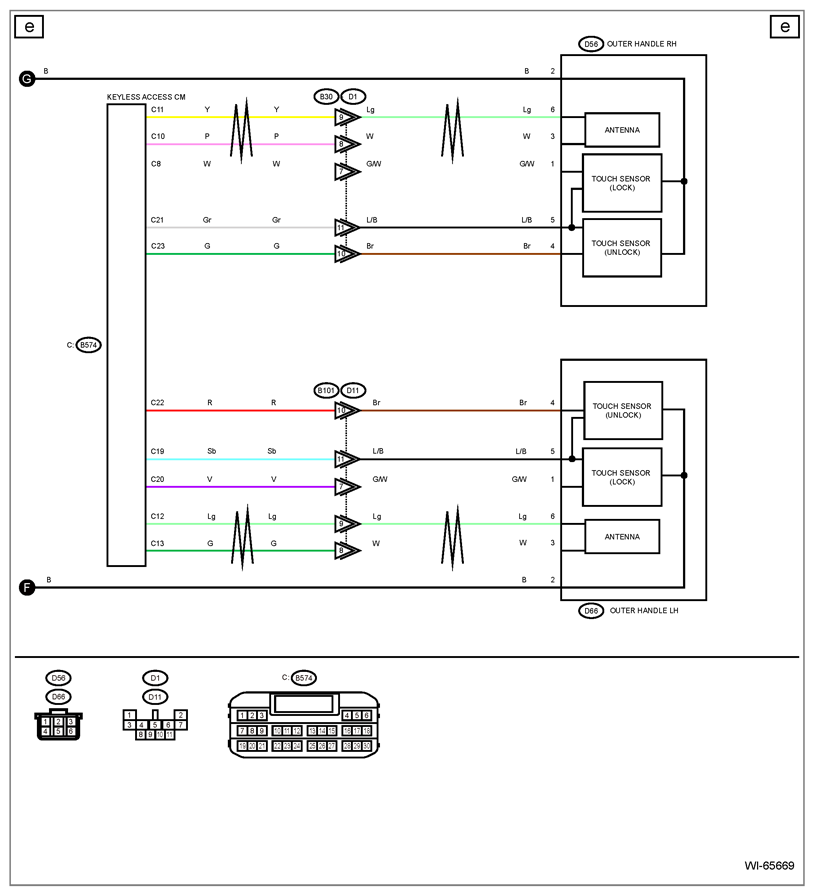

Fig 5: Keyless Access System Wiring Diagram (5 Of 9)

Courtesy of SUBARU OF AMERICA, INC.

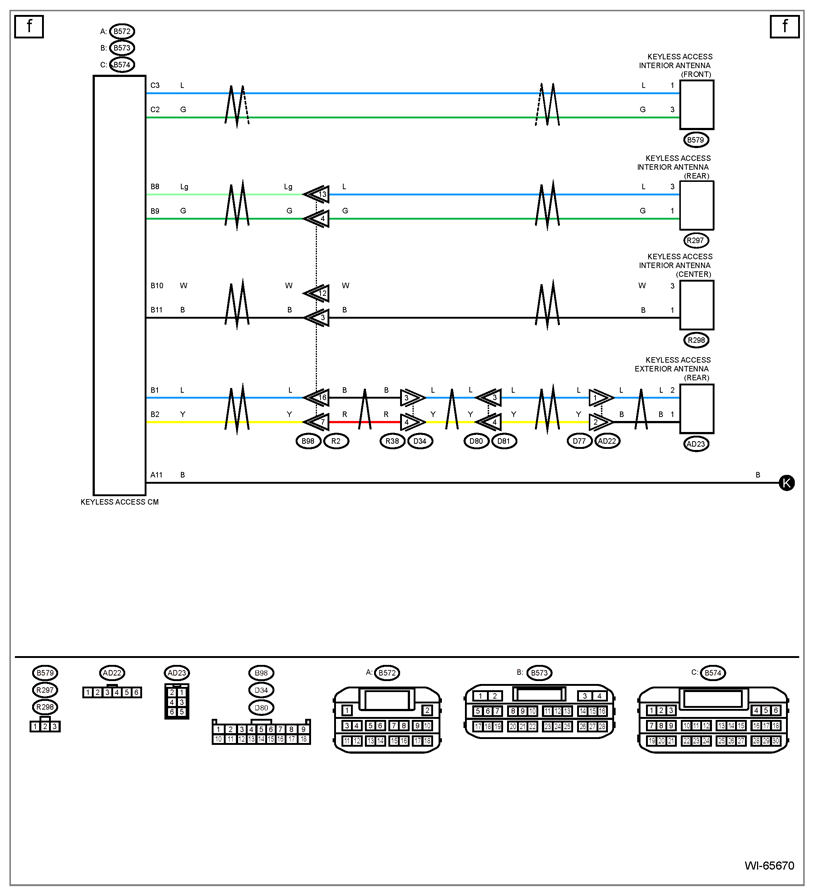

Fig 6: Keyless Access System Wiring Diagram (6 Of 9)

Courtesy of SUBARU OF AMERICA, INC.

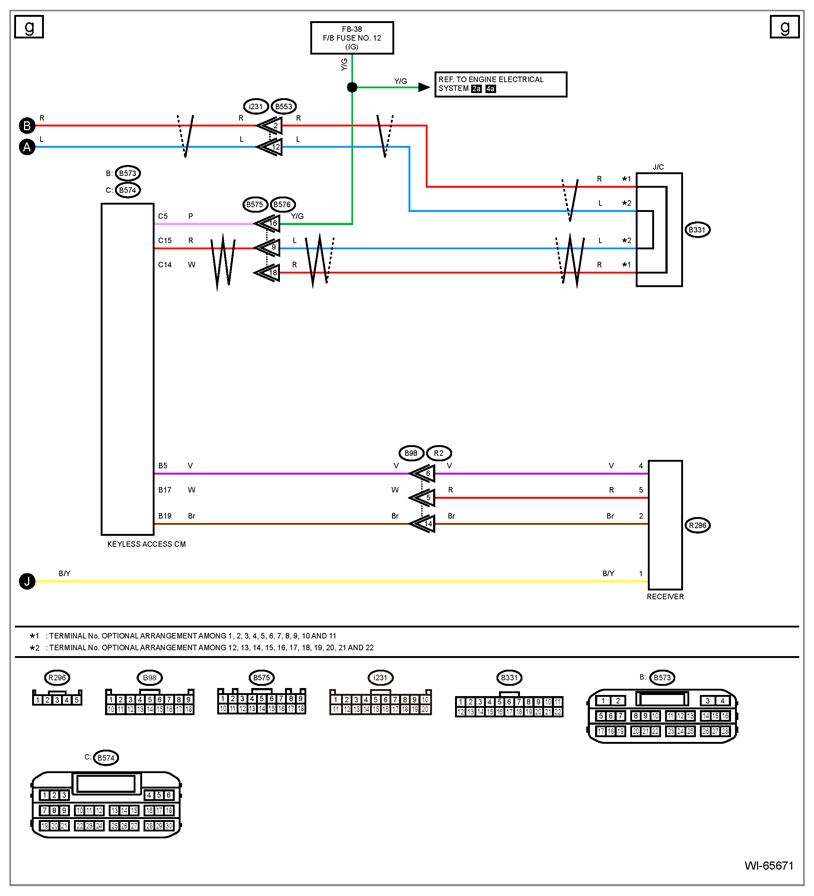

Fig 7: Keyless Access System Wiring Diagram (7 Of 9)

Courtesy of SUBARU OF AMERICA, INC.

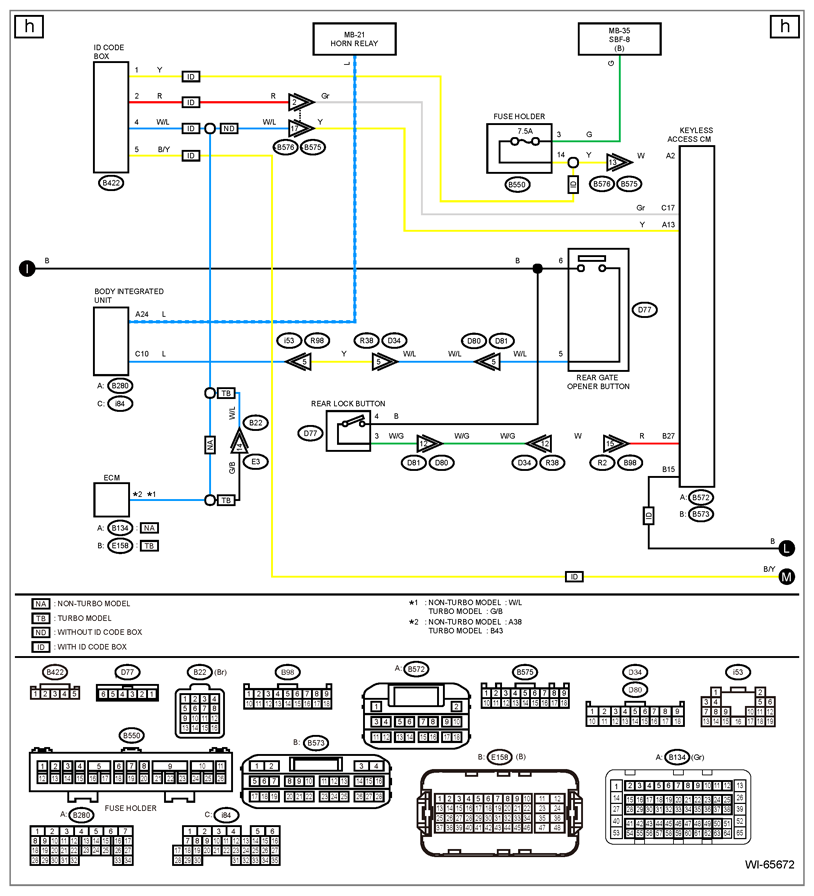

Fig 8: Keyless Access System Wiring Diagram (8 Of 9)

Courtesy of SUBARU OF AMERICA, INC.

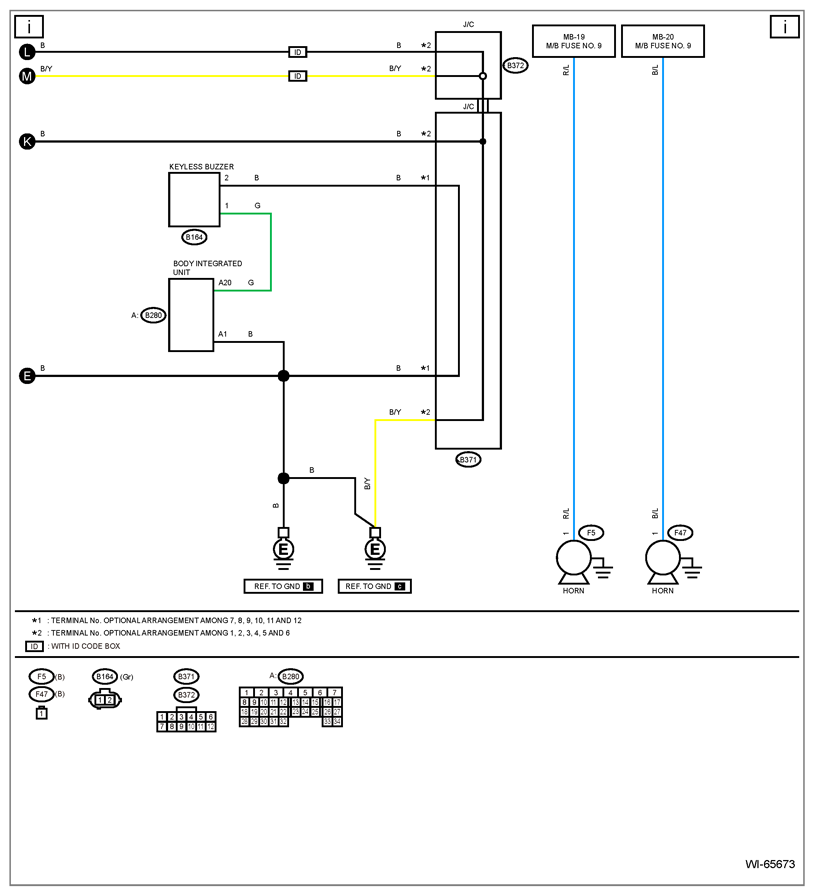

Fig 9: Keyless Access System Wiring Diagram (9 Of 9)

Courtesy of SUBARU OF AMERICA, INC.
