DTC B27A1 Driver Side External Antenna Open: Wiring diagram

Keyless access system Ref. to WIRING SYSTEM>Keyless Access System>WIRING DIAGRAM .

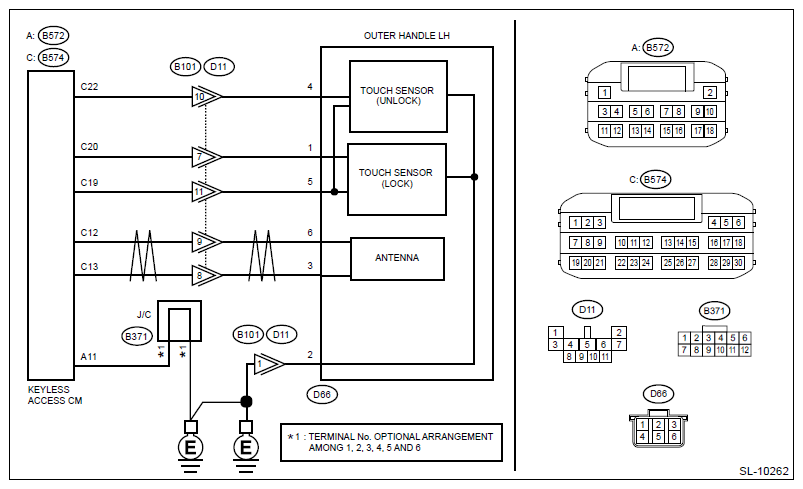

Fig 1: Driver Side External Antenna Open System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: For replacement procedure of keyless access CM, refer to the "REGISTRATION MANUAL FOR IMMOBILIZER" provided as a separate volume. Contact an authorized Subaru Dealership.

Fig 2: Driver Side External Antenna Open Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
