IG Relay2 (Push Button Start): Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .
3. Remove the knee airbag module. Ref. to AIRBAG SYSTEM>Knee Airbag Module>REMOVAL .
4. Release the lock and remove the fuse holder.
   Fig 1: Locating Fuse Holder And Lock

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the relay & fuse box.
   1. Disconnect the connector.
   2. Remove the bolts and nuts, and remove the relay & fuse box.
   Fig 2: Locating Relay & Fuse Box With Bolts And Nuts

   Courtesy of SUBARU OF AMERICA, INC.

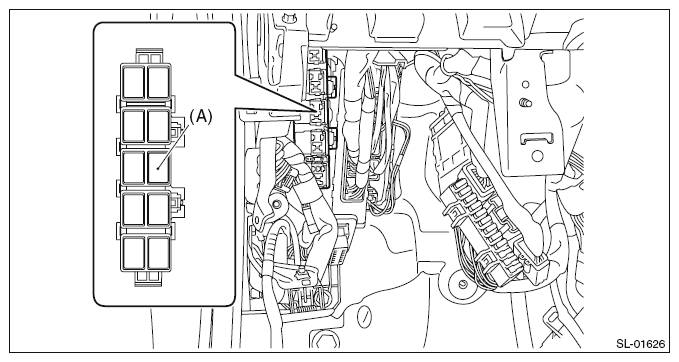

6. Remove IG relay 2 (push button start) (A) from the relay holder.

Fig 3: Removing IG Relay 2 (Push Button Start) From Relay Holder
