Accessory Relay (Push Button Start): Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .
3. Remove the knee airbag module. Ref. to AIRBAG SYSTEM>Knee Airbag Module>REMOVAL .
4. Release the lock and remove the fuse holder.
   Fig 1: Locating Fuse Holder And Lock

   Courtesy of SUBARU OF AMERICA, INC.

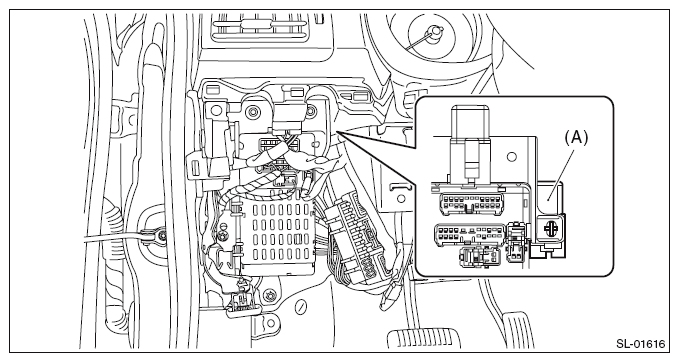

5. Remove the accessory relay (push button start) (A) from the relay and fuse box.

Fig 2: Removing Accessory Relay (Push Button Start) From Relay And Fuse Box

Courtesy of SUBARU OF AMERICA, INC.
