Relay and Fuse: Location

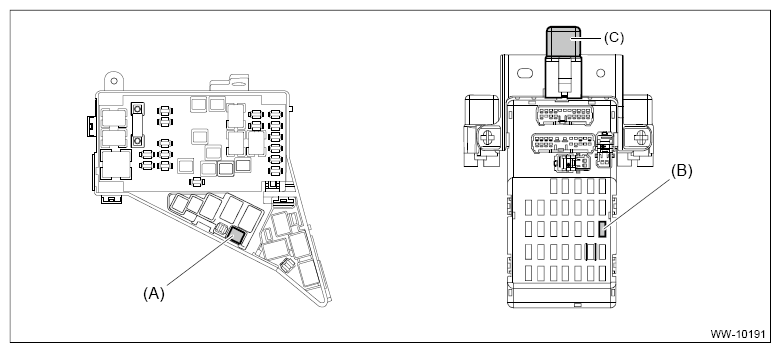

Fig 1: Locating Wiper And Washer Systems Relay And Fuse
G11268575Courtesy of SUBARU OF AMERICA, INC.
Main Fuse Box Fuse 30 A (wiper) (A)
Relay & fuse box Fuse 7.5 A (wiper) (B)
Relay holder Wiper relay (C)
NOTE: For other related fuses, refer to the wiring diagram. Ref. to WIRING SYSTEM>Power Supply Circuit .
