Relay and Fuse: Location

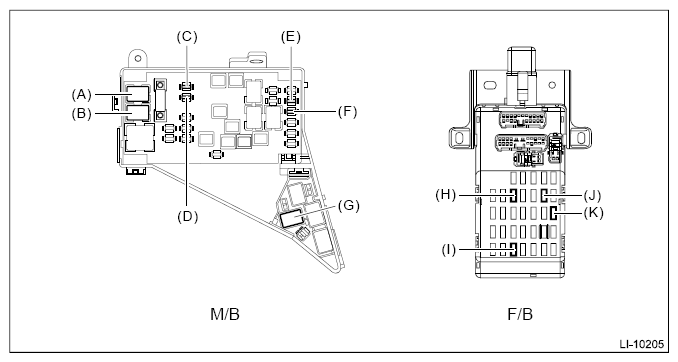

Fig 1: Identifying Relay And Fuse Components (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying Relay And Fuse Components (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying Relay And Fuse Components (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Main fuse box

Headlight relay (HI)

(A)

Headlight relay (LO)

(B)

Fuse 15 A (high beam LH/RH)

(C)

Fuse 30 A (combination light LH/RH)

(D)

Fuse 15 A (tail and illumination relay, daytime running light relay)

(E)

Fuse 15 A (turn signal & hazard unit, key illumination)

(F)

Daytime running light relay⁽⁴⁾

(G)

Relay & fuse box

Fuse 10 A (stop light and brake switch)

(H)

Fuse 15 A (front fog light relay⁽¹⁾, front fog light relay LH/RH⁽²⁾)

(I)

Fuse 7.5 A (turn signal & hazard unit)

(J)

Fuse 7.5 A (inhibitor switch, back-up light switch, auto headlight beam leveler control module)

(K)

Relay holder

Passenger room (LH)

Tail & illumination relay

(L)

Passenger room (RH)⁽¹⁾

Front fog light relay

(M)

Engine room (non-turbo model)⁽²⁾

Front fog light relay RH

(N)

Front fog light relay LH

(O)

Engine room (turbo model) ⁽²⁾

Front fog light relay LH

(P)

Front fog light relay RH

(Q)

Headlight (daytime running light relay unit)⁽³⁾

Daytime running light & high beam relay LH

(R)

Daytime running light & high beam relay RH

(S)

⁽¹⁾	Model without SRF

⁽²⁾	Model with SRF

⁽³⁾	Halogen type

⁽⁴⁾

LED type

NOTE: For other related fuses, refer to the wiring diagram. Ref. to WIRING SYSTEM>Power Supply Circuit .
