Back-up Light Bulb: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the light assembly - rear combination. Ref. to LIGHTING SYSTEM>Rear Combination Light Assembly>REMOVAL .
  3. Remove the bulb socket and back-up light bulb.
    CAUTION: Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.

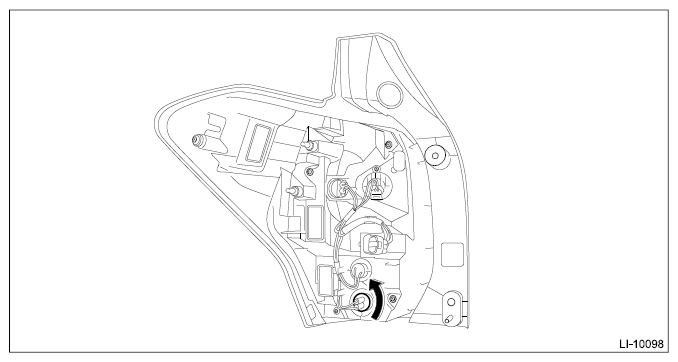

Fig 1: Removing Bulb Socket
G11268534Courtesy of SUBARU OF AMERICA, INC.
