Rear Combination Light Assembly: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the light assembly - rear combination.
    CAUTION: Be careful not to damage the clips.
    1. Release the bolts and clips, then pull out the light assembly - rear combination to the vehicle rear.
    2. Disconnect the connector and remove the light assembly - rear combination.

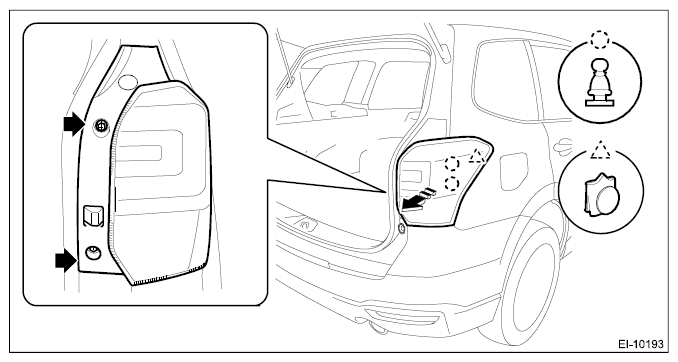

Fig 1: Locating Light Assembly - Rear Combination Bolts And Clips
G11268530Courtesy of SUBARU OF AMERICA, INC.
