Relay and Fuse: Location

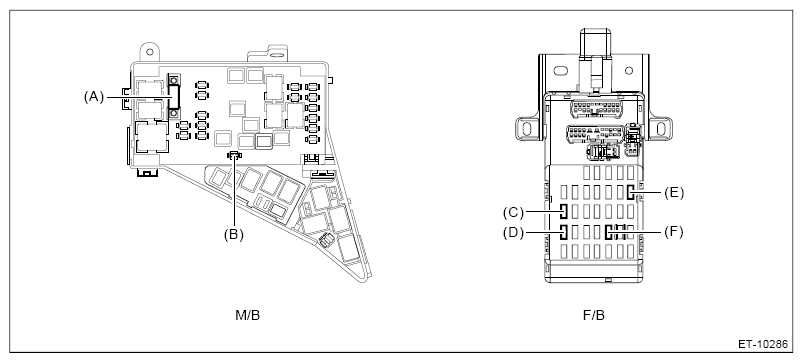

Fig 1: Identifying Relay And Fuse Components Location

Courtesy of SUBARU OF AMERICA, INC.

Main Fuse Box

MAIN SBF120 A (data
communication module⁽¹⁾)

(A)

Fuse 20 A (audio, navigation unit)

(B)

Relay & fuse box

Fuse 20 A (rear accessory power supply socket)

(C)

Fuse 10 A (front accessory power supply socket)

(D)

Fuse 15 A (data communication module⁽¹⁾)

(E)

Fuse 10 A (audio, navigation unit, data communication module⁽¹⁾)

(F)

⁽¹⁾	Model with telematics

NOTE: For other related fuses, refer to the wiring diagram. Ref. to WIRING SYSTEM>Power Supply Circuit .
