DTC B2910 Steering Responsive Headlight Communication RH: Wiring diagram

Headlight beam leveler system Ref. to WIRING SYSTEM>Headlight Beam Leveler System>WIRING DIAGRAM .

Fig 1: Steering Responsive Headlight Communication (RH) System Wiring Diagram And Connector End View

Courtesy of SUBARU OF AMERICA, INC.

CAUTION:

• Initialization is required after replacing the auto headlight beam leveler CM.
• After replacing the headlight assembly, headlight beam adjustment is required.

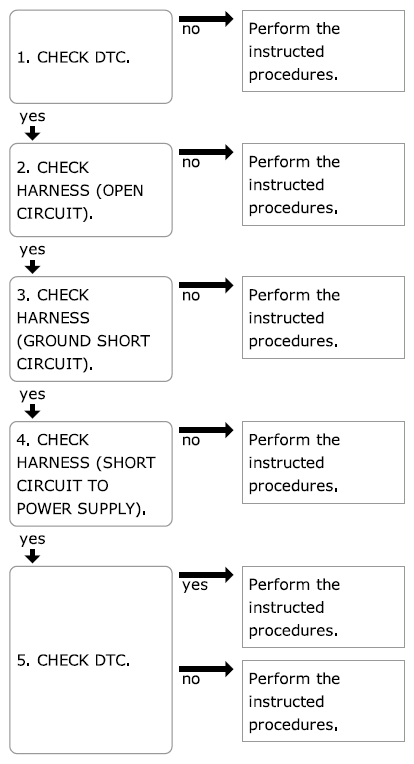

Fig 2: Steering Responsive Headlight Communication (RH) Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
