Headlight Beam Leveler System: Wiring Diagram

Fig 1: Headlight Beam Leveler System Wiring Diagram (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

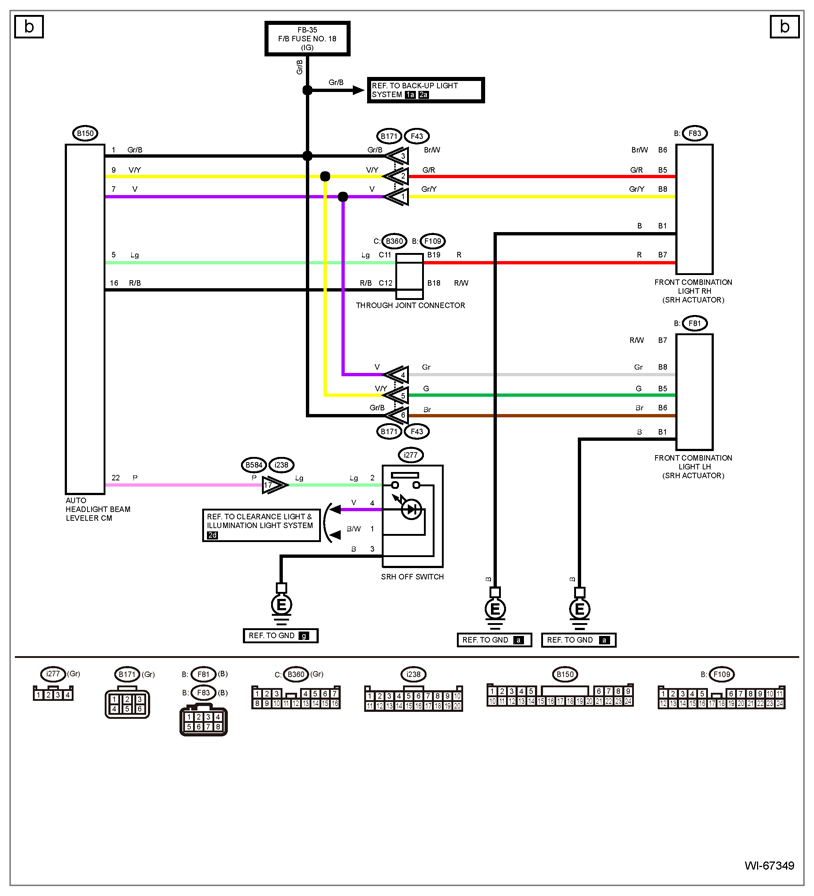

Fig 2: Headlight Beam Leveler System Wiring Diagram (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

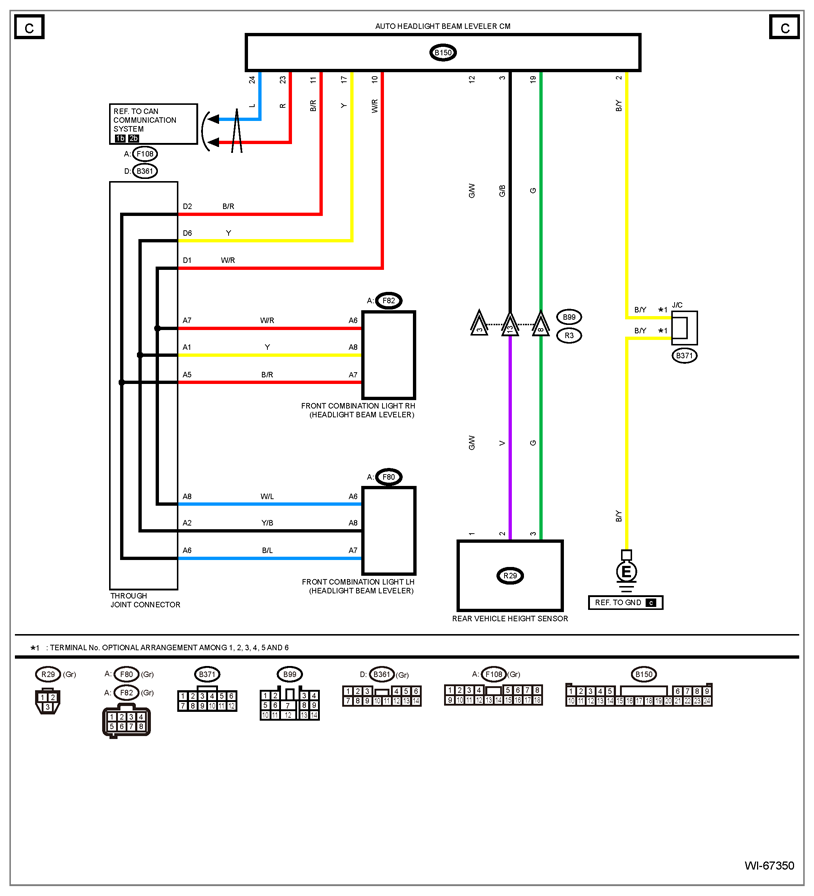

Fig 3: Headlight Beam Leveler System Wiring Diagram (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
