Radar Sensor LH (Master)

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the bumper face - rear. Ref. to EXTERIOR/INTERIOR TRIM>Rear Bumper>REMOVAL .
  3. Remove the radar sensor LH (master).
    1. Disconnect the connector.
    2. Remove the nut and remove the radar sensor LH (master).

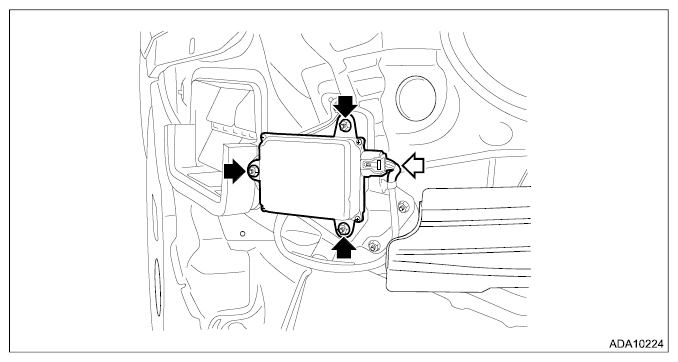

    Fig 1: Locating Nuts And Radar Sensor LH (Master)
    G11272167Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the radar bracket.
    1. Remove each harness clip.
    2. Remove the nut and remove the radar bracket.

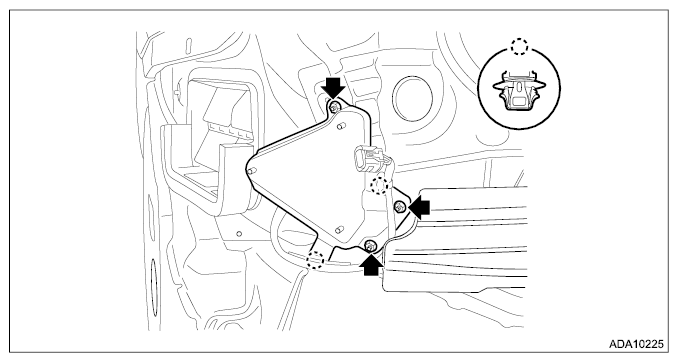

    Fig 2: Locating Nuts And Radar Bracket
    G11272168Courtesy of SUBARU OF AMERICA, INC.
