Communication For Initializing Impossible (MFD)

Detecting condition:

Defective harness connector
Power supply circuit malfunction
Defective MFD
Defective CAN communication circuit
Defective Subaru Select Monitor

Trouble symptom:

Communication is impossible between MFD and Subaru Select Monitor.

Wiring diagram:

Multi-function display (MFD) system Ref. to WIRING DIAGRAM , Multi-function Display (MFD) System.
CAN communication system Ref. to WIRING DIAGRAM , CAN Communication System.

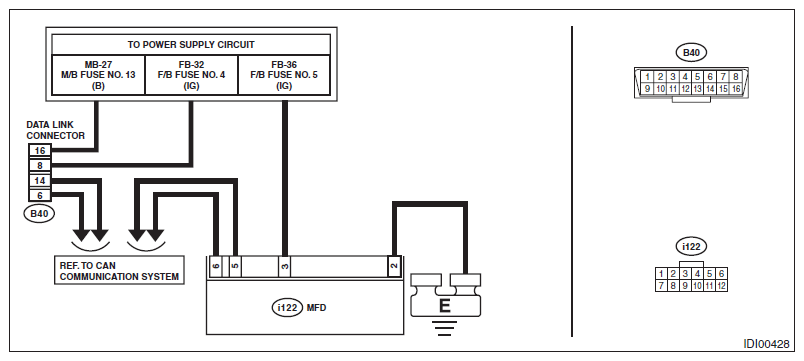

Fig 1: Multi-Function Display Wiring Diagram

G08316654

Courtesy of SUBARU OF AMERICA, INC.

Step	Check	Yes	No
1 CHECK OTHER COMMUNICATION . Communicate with the system other than the MFD using the Subaru Select Monitor.	Is the communication to other control module possible?	Go to step 2 .	Perform the "Communication for Initializing Impossible" of LAN system. Ref. to COMMUNICATION FOR INITIALIZING IMPOSSIBLE , Subaru Select Monitor.
2 CHECK DTC . Read the DTC of the LAN system using the Subaru Select Monitor. Ref. to OPERATION , Read Diagnostic Trouble Code (DTC).	Is DTC detected?	Perform the diagnosis according to DTC.	Go to step 3 .
