Transfer Driven Gear: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from the vehicle. < Ref. to REMOVAL , Manual Transmission Assembly. >
  2. Remove the back-up light switch and the neutral position switch. < Ref. to REMOVAL , Switches and Harness. >
  3. Remove the transfer case together with the extension case assembly. < Ref. to REMOVAL , Transfer Case and Extension Case Assembly. >
  4. Remove the extension case assembly.
  5. Remove the transfer driven gear and center differential as a unit.
    Fig 1: Removing Transfer Driven Gear And Center Differential Unit
    G06652310Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the taper roller bearing outer race.

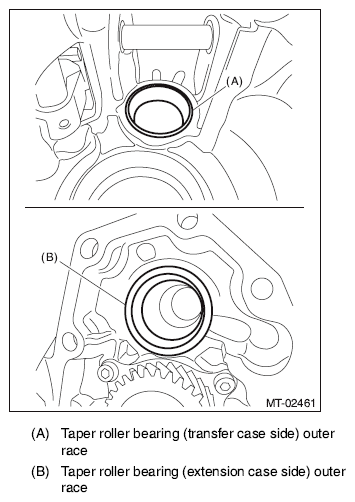

    Fig 2: Removing Taper Roller Bearing Outer Race
    G10293765Courtesy of SUBARU OF AMERICA, INC.
