Transfer Case and Extension Case Assembly: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the manual transmission assembly from the vehicle. < Ref. to REMOVAL , Manual Transmission Assembly. >
Remove the back-up light switch and the neutral position switch. < Ref. to REMOVAL , Switches and Harness. >
Remove the transfer case together with the extension case assembly.

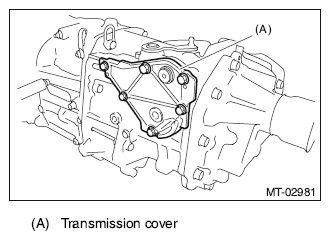

1. Remove the transmission cover.

  Fig 1: Identifying Transmission Cover
  Courtesy of SUBARU OF AMERICA, INC.
2. Set and hold the selector lever COMPL to the 1st-2nd side, and remove the transfer case and extension case assembly as a unit.

  Fig 2: Holding Selector Lever COMPL
  Courtesy of SUBARU OF AMERICA, INC.
Remove the transfer cover.

Fig 3: Identifying Transfer Cover
Courtesy of SUBARU OF AMERICA, INC.
Use the ST to push out the spring pin, and remove the shift lever COMPL.
ST 398791700 REMOVER

Fig 4: Identifying Shift Lever COMPL And Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the extension case assembly.

Fig 5: Identifying Extension Case Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the transfer driven gear and center differential as a unit.

Fig 6: Removing Transfer Driven Gear And Center Differential Unit
Courtesy of SUBARU OF AMERICA, INC.
Remove the taper roller bearing (extension case side) outer race and the adjusting washer.

Fig 7: Identifying Taper Roller Bearing (Extension Case Side) Outer Race
Courtesy of SUBARU OF AMERICA, INC.
