DTC P1C22: Manufacturer Controlled DTC: Wiring Diagram

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek. However, it is still accessible from the selected car via links, so may be relevant.

Hybrid system < Ref. to WIRING DIAGRAM , Hybrid Electric Vehicle System.>

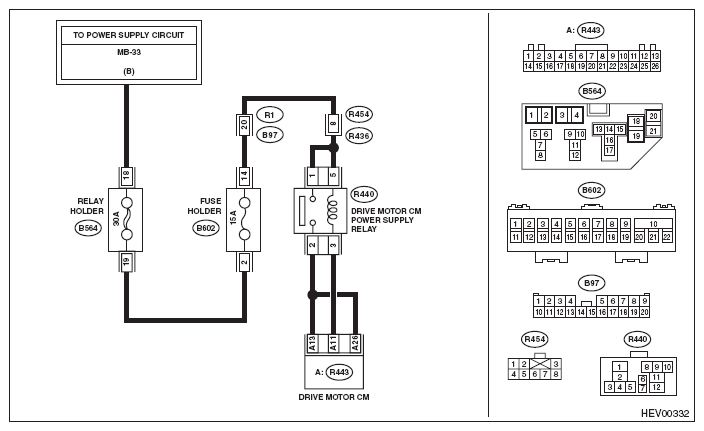

Fig 1: Manufacturer Controlled DTC - Wiring Diagram
G09479287Courtesy of SUBARU OF AMERICA, INC.
DTC PROCEDURE

Step Check Yes No
1 CHECK CURRENT DATA.
Using the Subaru Select Monitor, confirm the current data of drive motor control system, the value of «Control Module Voltage». < Ref. to DRIVE MOTOR CONTROL SYSTEM , OPERATION, Read Current Data.>
Is the value 9 V or less? Go to step . Even if DTC is detected, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again.
NOTE: In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.
2 CHECK BATTERY.
  1. Turn the ignition switch to OFF.
  2. Disconnect battery terminals.
  3. Check the 12 volt auxiliary battery as a single part. < Ref. to BATTERY .>
Is the condition normal? Go to step . Charge or replace the battery.
3 CHECK HARNESS (OPEN CIRCUIT).
  1. Connect the 12 volt auxiliary battery.
  2. Using a tester, measure the voltage between the DMCM power relay and the ground bolt of inverter frame body.

    Connector & terminal

    (R440) No. 2 (+) - Ground bolt of inverter frame body (-):

Is the voltage 9 V or less? Repair open circuit in harness between DMCM power supply relay connector and 12 volt auxiliary battery, or repair the intermediate connector. Go to step .
4 CHECK HARNESS (SHORT TO GROUND).
  1. Disconnect the DMCM connector.
  2. Remove the DMCU power relay. < Ref. to appropriate RELAY AND FUSE in Continuously Variable Transmission TH58A article.>
  3. Using a tester, measure the resistance between DMCM connector terminals and the ground bolt of inverter frame body.

    Connector & terminal

    (R443) No. 13 - Ground bolt of inverter frame body:

    (R443) No. 26 - Ground bolt of inverter frame body:

Is the resistance 1 MΩ or more? Replace DMCM. < Ref. to appropriate DRIVE MOTOR CONTROL MODULE in Continuously Variable Transmission TH58A article.> Repair short to ground circuit in harness between DMCM power supply relay connector and 12 volt auxiliary battery, or repair the intermediate connector.
