Draining Of Engine Coolant

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to OFF.
  2. Lift up the vehicle.
  3. Remove the under cover. < Ref. to REMOVAL , Front Under Cover.>
  4. Remove the drain plug to drain engine coolant into container.
    NOTE: Remove the radiator cap so that engine coolant will drain faster.

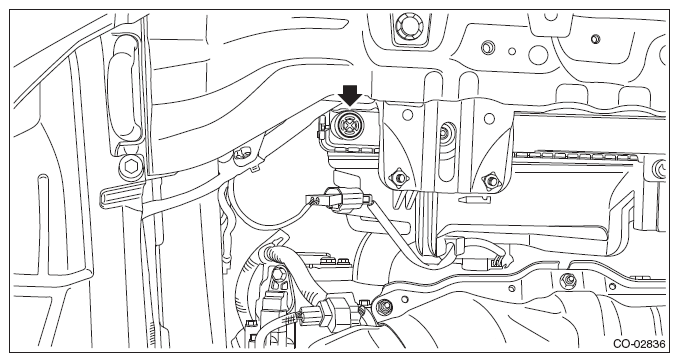

    Fig 1: Locating Radiator Cap
    G08315731Courtesy of SUBARU OF AMERICA, INC.
  5. Install the drain plug.
    NOTE: Use new O-rings.
  6. Install the under cover. < Ref. to INSTALLATION , Front Under Cover.>
