Front Under Cover: Installation

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek. However, it is still accessible from the selected car via links, so may be relevant.

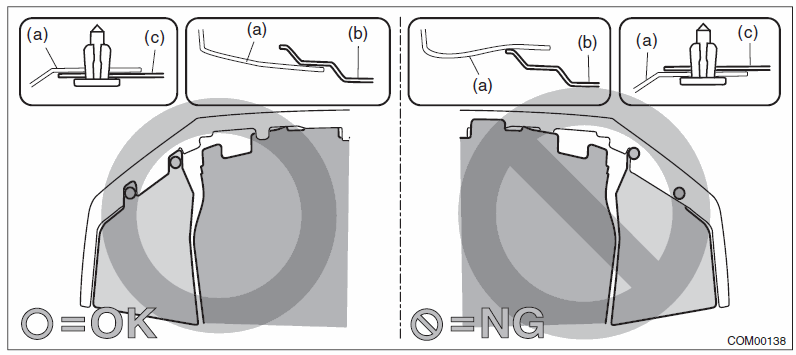

CAUTION: Install the under cover so that the under cover front end (b) comes inside of the bumper face - front (a).

Fig 1: Caution For Installing Bumper Face - Front

Courtesy of SUBARU OF AMERICA, INC.

Install each part in the reverse order of removal.

Tightening torque:

18 N.m (1.84 kgf-m, 13.3 ft-lb)
