Glove Box: Removal

NOTE: Refer to "Security and Locks" article for key cylinder replacement. < Ref. to GLOVE BOX LID , REPLACEMENT, Key Lock Cylinders. >

Remove the pocket assembly.
1. Attach the protective tape (a) to the panel center LWR.
2. Remove the damper COMPL - pocket.
3. Release the stoppers and remove the pocket assembly by pulling it toward you.

  Fig 1: Attaching Protective Tape To Panel Center LWR
  Courtesy of SUBARU OF AMERICA, INC.
Remove the back panel - pocket.

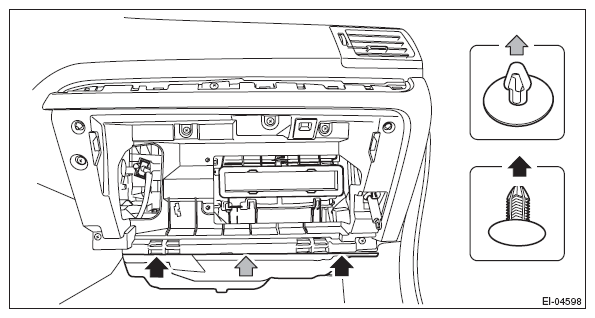

1. Release the clips, and remove the under cover assembly - passenger.

  Fig 2: Removing Passenger Under Cover Assembly
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the clips, and remove the cover - instrument panel side RH.
  NOTE: Remove the cover - instrument panel side RH by using a plastic remover.

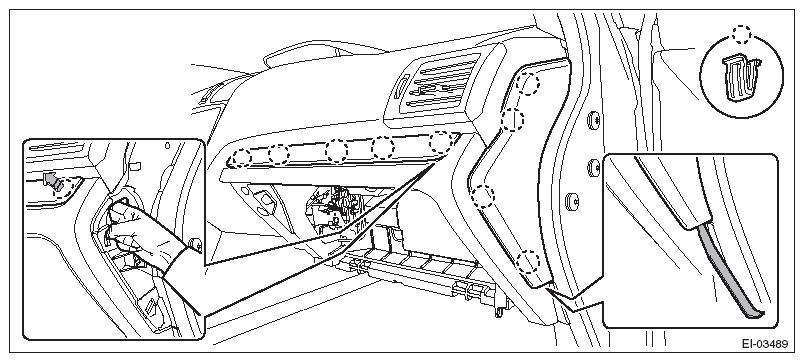

3. Release the clips, and remove the ornament - panel assembly passenger.

  Fig 3: Removing Ornament Panel Assembly (Passenger)
  Courtesy of SUBARU OF AMERICA, INC.

  NOTE: To facilitate the removal, push the clip of the ornament - panel assembly passenger from the backside.
4. Remove the glove box light LED, and disconnect the connector.
5. Remove the screws, claws and harness clamp, then remove the back panel - pocket.

  Fig 4: Locating Pocket Back Panel Claws And Screws
  Courtesy of SUBARU OF AMERICA, INC.
