Front Grille: Removal

  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
  2. Remove the bumper face - front. < Ref. to REMOVAL , Front Bumper. >
  3. Remove the front grille assembly.
    1. Remove the screws from the back side of the bumper face - front.
    2. Release the claws, and remove the front grille assembly.

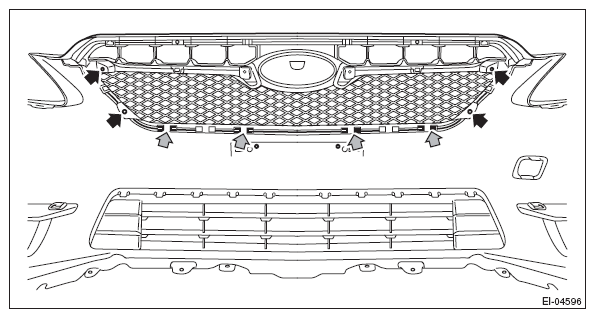

      Fig 1: Locating Front Grille Assembly Claws
      G10319955Courtesy of SUBARU OF AMERICA, INC.
