Cylinder Head And Camshaft

WARNING: This page is about a different variant/trim than selected.

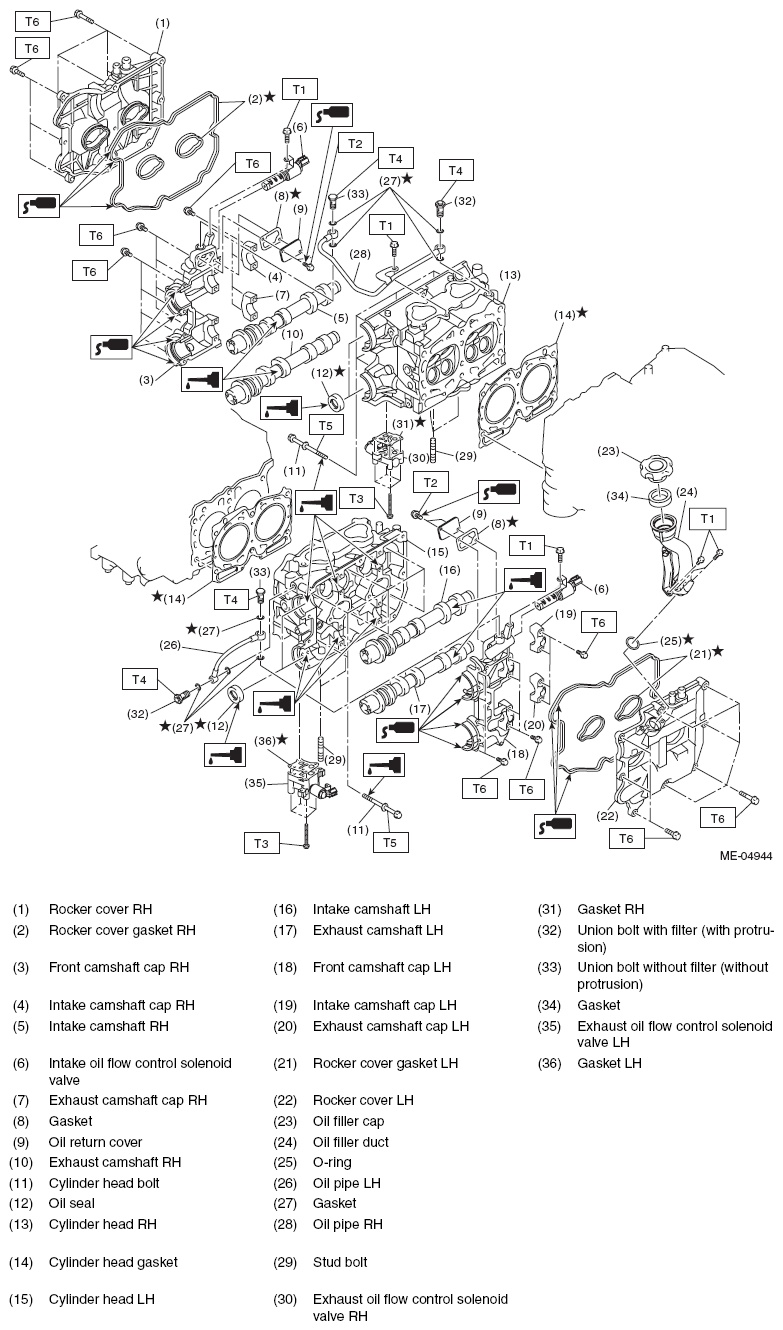

Fig 1: Exploded View Of Cylinder Head And Camshaft With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 9 (0.9, 6.6)

T3: 10 (1.0, 7.4)

T4: 29 (3.0, 21.4)

T5: <Ref. to INSTALLATION , Cylinder Head.>

T6: <Ref. to INSTALLATION , Camshaft.>
