Reverse Check System: Installation

WARNING: This page is about a different variant/trim than selected.

Insert the reverse lock plunger.
Install the reverse check plunger, spring, gasket and plug in order.
NOTE: Use a new gasket.

Tightening torque:

41 N.m (4.2 kgf-m, 30.2 ft-lb)
Install the spring and reverse check shaft to the extension case.
NOTE: Confirm that the end of the spring matches the hole of the reverse check shaft and the cut out of the extension case.

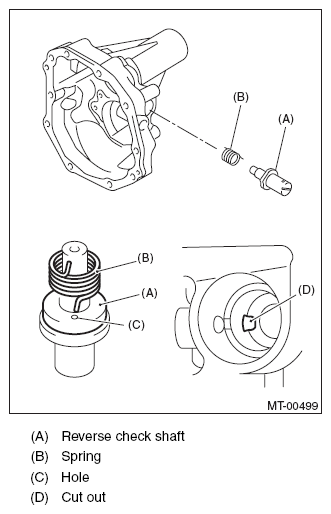

Fig 1: Installing Spring And Reverse Check Shaft To Extension Case
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap ring.
Attach ST1 to the reverse check shaft. Install the new oil seal, and push it in using ST2.
ST1 18671AA000 OIL SEAL GUIDE

ST2 18657AA010 INSTALLER

Fig 2: Installing Washer And Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Insert the reverse check lever, and turn the reverse check shaft until the plunger is first pushed in.

Fig 3: Turning Reverse Check Shaft Until Plunger
Courtesy of SUBARU OF AMERICA, INC.
Match the hole of the reverse check lever and the reverse check shaft, and attach the straight pin.
NOTE: Use a new straight pin.

Fig 4: Installing Reverse Check Lever And Reverse Check Shaft Match Hole
Courtesy of SUBARU OF AMERICA, INC.
Check that the reverse check is operating correctly. <Ref. to INSPECTION , Reverse Check System.>
Install the extension case. <Ref. to INSTALLATION , Extension Case.>
Install the manual transmission assembly to the vehicle. <Ref. to INSTALLATION , Manual Transmission Assembly.>
