Mode Door Actuator: Removal

  1. Remove the instrument panel lower cover. Refer to REMOVAL .
  2. Remove the bolt and detach the knee protector.
    Fig 1: Locating Knee Protector Bolts
    G08348746Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the body integrated unit.
    CAUTION: Be careful to keep water and other foreign materials away from body integrated unit.
    1. Remove the harness clip and connector.
    2. Remove the bolts, and remove the body integrated unit.
      Fig 2: Locating Body Integrated Unit Bolts And Clips
      G06653942Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the mode door actuator.
    1. Disconnect the connector.
    2. Remove the screws, and remove the mode door actuator.

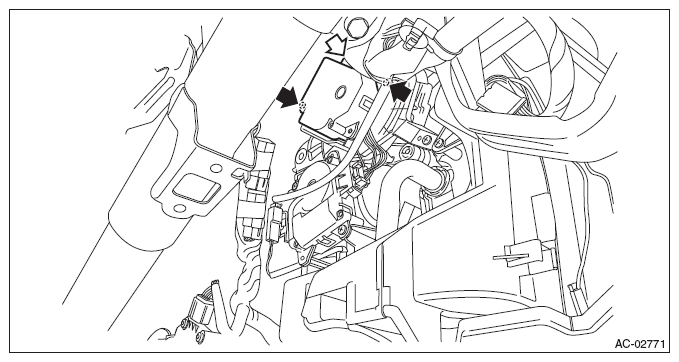

      Fig 3: Locating Mode Door Actuator Screws
      G08348748Courtesy of SUBARU OF AMERICA, INC.
