Instrument Panel Lower Cover: Removal

Disconnect the ground cable from battery.
Remove the clips, and remove the instrument panel side cover LH.

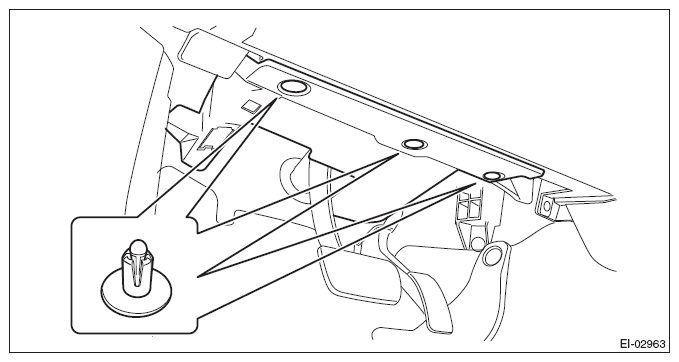

Fig 1: Identifying Instrument Panel Side Cover Clips (LH)
Courtesy of SUBARU OF AMERICA, INC.
Remove the instrument panel lower cover.
1. Remove the clips and data link connector, and remove the instrument panel lower cover under.

  Fig 2: Identifying Instrument Panel Lower Cover Under Clips
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the screws and clips and release the claws, and remove the instrument panel lower cover while disconnecting the harness connectors.

  Fig 3: Locating Instrument Panel Lower Cover Screws And Clips
  Courtesy of SUBARU OF AMERICA, INC.
