HVAC System (Heater, Ventilator And A/C): Condenser: Installation
CAUTION:
- Do not start the engine before charging refrigerant.
- If the engine is started with no refrigerant charge, replace the compressor.
- If the condenser has been replaced, add an appropriate amount of compressor oil to the compressor. Refer to ADJUSTMENT .
- Replace the O-rings with new parts, and then apply compressor oil.

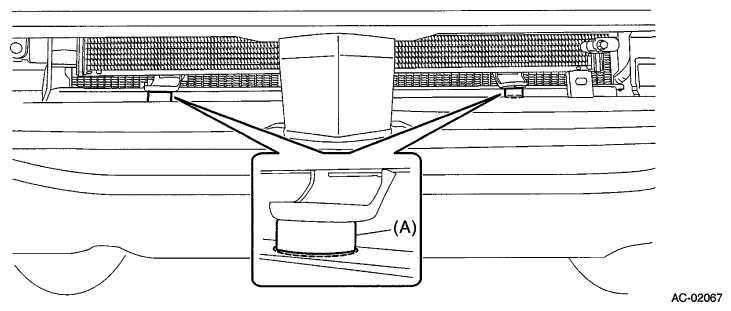

- Confirm that lower guide (A) of condenser fits into holes on radiator panel.
- Install each part in the reverse order of removal.
- Charge refrigerant. Refer to
PROCEDURE .
Tightening torque:
Air conditioning unit: Refer to AIR CONDITIONING UNIT .
Radiator upper bracket: 12 N.m (1.2 kgf-m, 8.9 ft-lb)
