Air Conditioning Unit

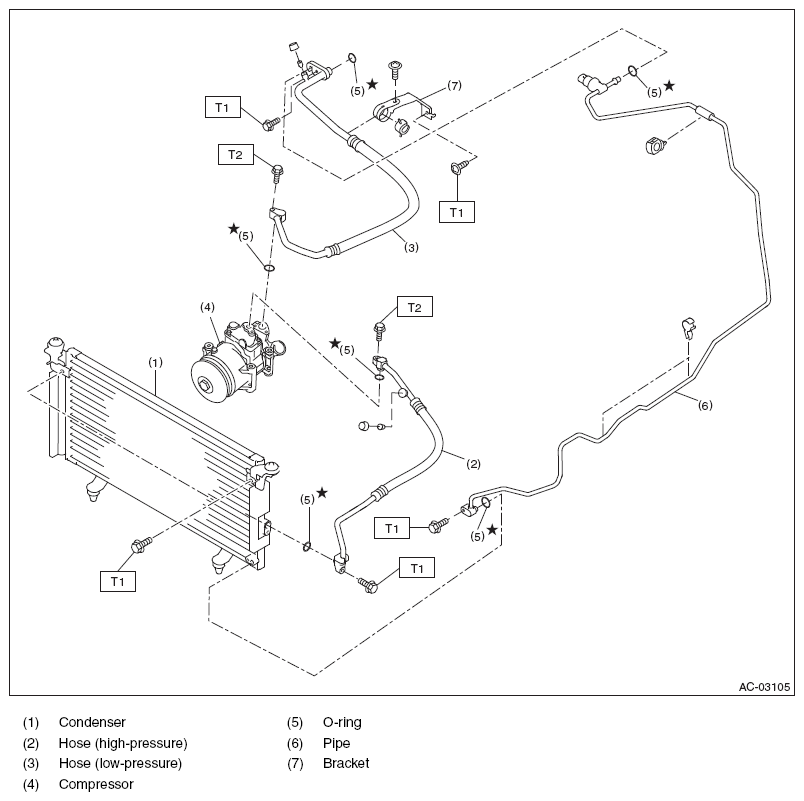

Fig 1: Air Conditioning Unit Replacement Components With Torque Specifications (H4 Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 10 (1.02, 7.4)

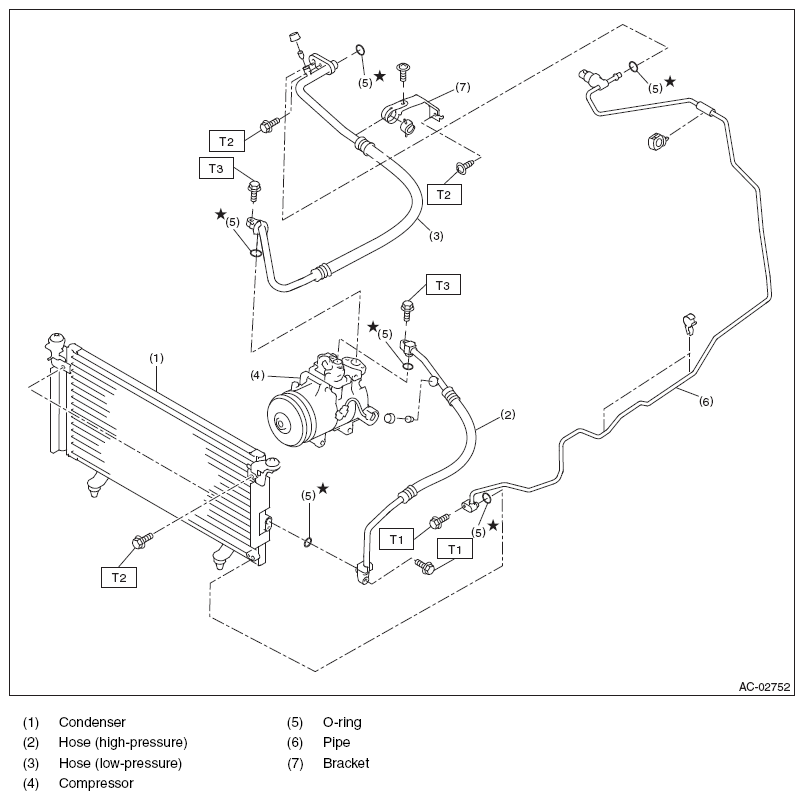

Fig 2: Air Conditioning Unit Replacement Components With Torque Specifications (H6 Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.51, 3.7)

T2: 7.5 (0.76, 5.5)

T3: 10 (1.02, 7.4)
